MP sava3 - 3-Phase Motor Electrical Connections

MP sava3 Hidraulic Power Unit 1 ¼” 1 ½”
V700 - 11/2017
7/40
MTMECMPsava3_700_EN
NOTE:
Once the installation is finished, check the motor turns to the ‘right’; should it turn to the left, the pump is very noisy. In this case, reverse the polarity of the
motor wiring (change two of the phases).

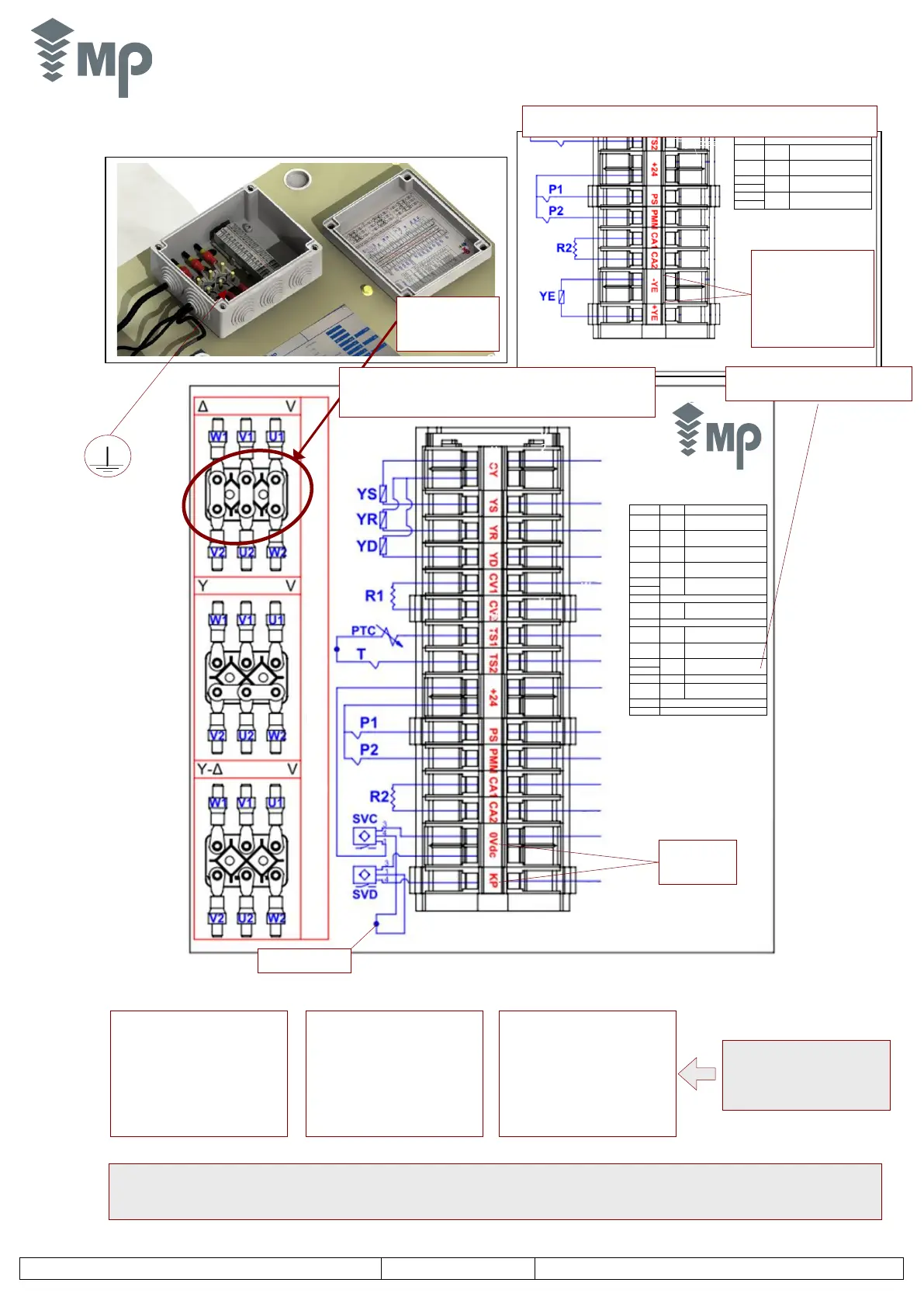

1.6. Electrical connections for 3-phase motors ¡Error! Marcador no definido.
CY
Común electroválvula
Common Electrovalve
YS
Electroválvula YS
Electrovalve YS
YR
Electroválvula YR
Electrovalve YR
YD
Electroválvula YD
Electrovalve YD
CV1
R1
R. Calentamiento Valv.
V.Block Heater
CV2
TS1
PTC
TS2
T
Termosonda
T.Switch
+24
VDC
PS
P1
Presostato
P.Switch
PMM
P2
Presostato.Pmax/Pmin
P.Swith. Pmax/Pmin
CA1
R2
Resistencia. Depósito
Tank Oil Heater
CA2
0Vdc
0Vdc
KP
Salida sensores
Output Sensors
SVC
SVC Sensor
SVD
SVD Sensor
Y- D Connection
Motors star-delta connected:
50 Hz
- 230/400 (mains 230 V).
- 400/690 (mains 400 V).
- 415/720 (mains 415 V).
60 Hz
- 220/380 (mains 220 V)
- 380/660 (mains 380 V)
Submerge the heater resistance into
the oil (Optional component)
Motor is supplied
according to the
customer
specifications.
U
2
W
1
V
1
U
1
D Connection
Motors delta connected:
50 Hz
- 230/400 (mains 230 V)
- 400/690 (mains 400 V)
- 415/720 (mains 415 V)
60 Hz
- 220/380 (mains 220 V)
- 380/660 (mains 380 V)
Y Connection
Motors star connected:
50 Hz
- 230/400 (mains 400 V).
60 Hz
- 220/380 (mains 380 V).
Warning:
Y-D starting is possible only if the
motors are wound for the voltages
shown in these diagrams.
EN 81-2+A3
EN 81-20
2014/33/EU
CONNECTION
THE EMERGENCY
VALVE WILL NOT BE
INCLUDED IN POWER
UNITS THAT SHOULD
BE IN ACCORDANCE
WITH THE EN 81-2+A3
AND EN 81-20
STANDARD
Connection according to EN 81-2+A3
and EN 81-20/50
+24
VDC
PS
P1
Presostato
P.Switch
PMM
P2
Presostato.Pmax/Pmin
P.Swith. Pmax/Pmin
CA1
R2
Resistencia. Depósito
Tank Oil Heater
CA2
-YE
Electroválvula YE
Electrovalve YE
+YE
Connection considering Emergency Valve
1: Marrón/Brown
4: Negro/Black
3: Azul/Blue
VIOLETA
VIOLET
NEGRO
BLACK
AMARILLO
YELLOW
AMARILLO
YELLOW
MARRÓN
BROWN
BLANCO/AZUL
WHITE/BLUE
ROJO
RED
BLANCO
WHITE
BLANCO
WHITE
VERDE
GREEN
VERDE
GREEN
AZUL
BLUE
NARANJA
ORANGE
ROSA
PINK
GRIS
GREY
