MP sava3 Hidraulic Power Unit 1 ¼” 1 ½”
V700 - 11/2017
35/40
MTMECMPsava3_700_EN
4
5
6
7
1
2
3

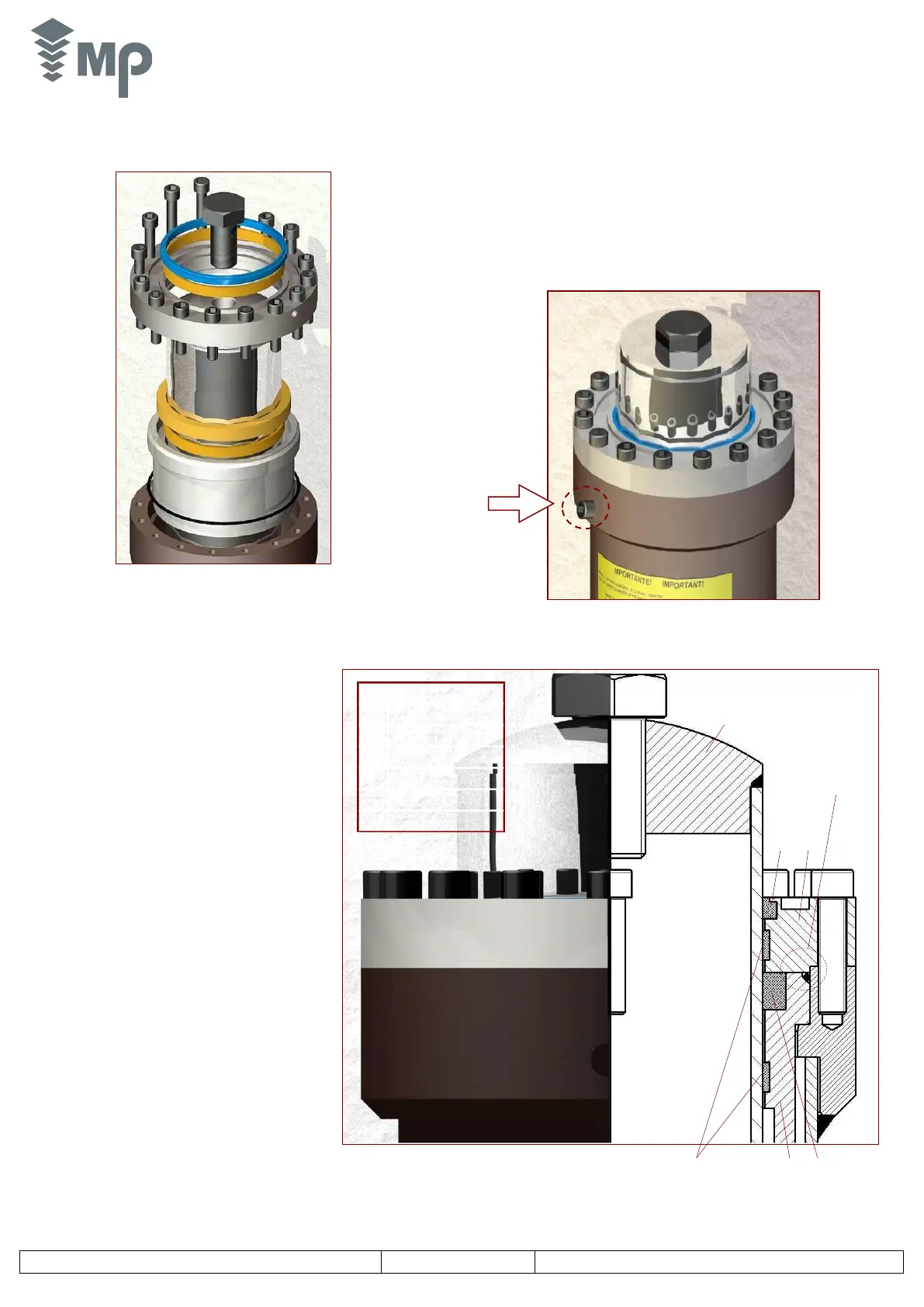

1
Piston
2
Scraper
3
Locking flange
4
Bushing
5
Catch
6
O-ring
7
Guide ring
Bleeding
NOTES:
- It is necessary to bleed the installation after any change of fittings.
- The usual amount of leakage through the cylinder joint is between 0,5 and 1 L per month.
