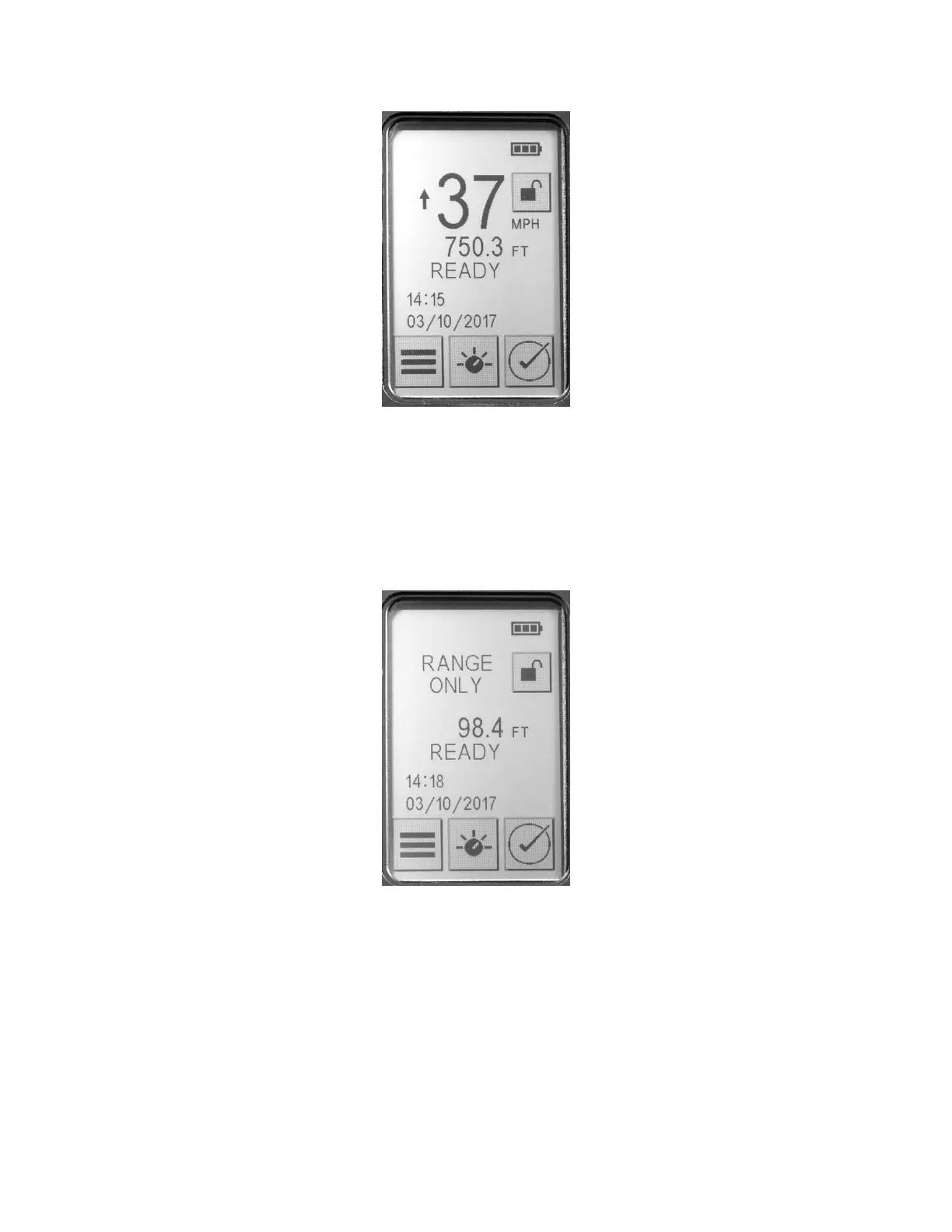

Figure6‐NormalOperationalModeShotExample
IntheRangeOnlyoperationalmode(Figure7),eachsuccessfullasershotshouldreturnthefollowing
information:
‐ Timeanddateoftheshot,
‐ Distancefromthelaseratwhichthetargetwascaptured,
‐ Correspondingdistanceunitsofmeasure.

Figure7‐RangeOnlyShotExample
Oncetheshotdatahasbeencaptured,thelaserunitwilldisplaythecapturedinformationonthe
displayedHOMEscreenaswellasdisplaysomeofthatinformationintheHUDdependingonhowHUD
settingsareconfigured.

