7.1.2.8.3 Time
TheTIMEpop‐upwindowisforsettingcurrenttimeandformat.
Theavailabletimeformatoptionsare:
‐ 12Hour(e.g.,04:20PM)
‐ 24Hour(e.g.,16:20)
7.1.2.8.4 LCDBrightness
ThebrightnesssettingcontrolstheintensityoftheLCDbacklight.Theavailablevaluesrangefrom
1
(dimmest)to4(brightest).
7.1.2.8.5 ShowTime/Date
TheShowTime/DatecheckboxdeterminesifthecurrentdateandtimeappearontheHOMscreen.

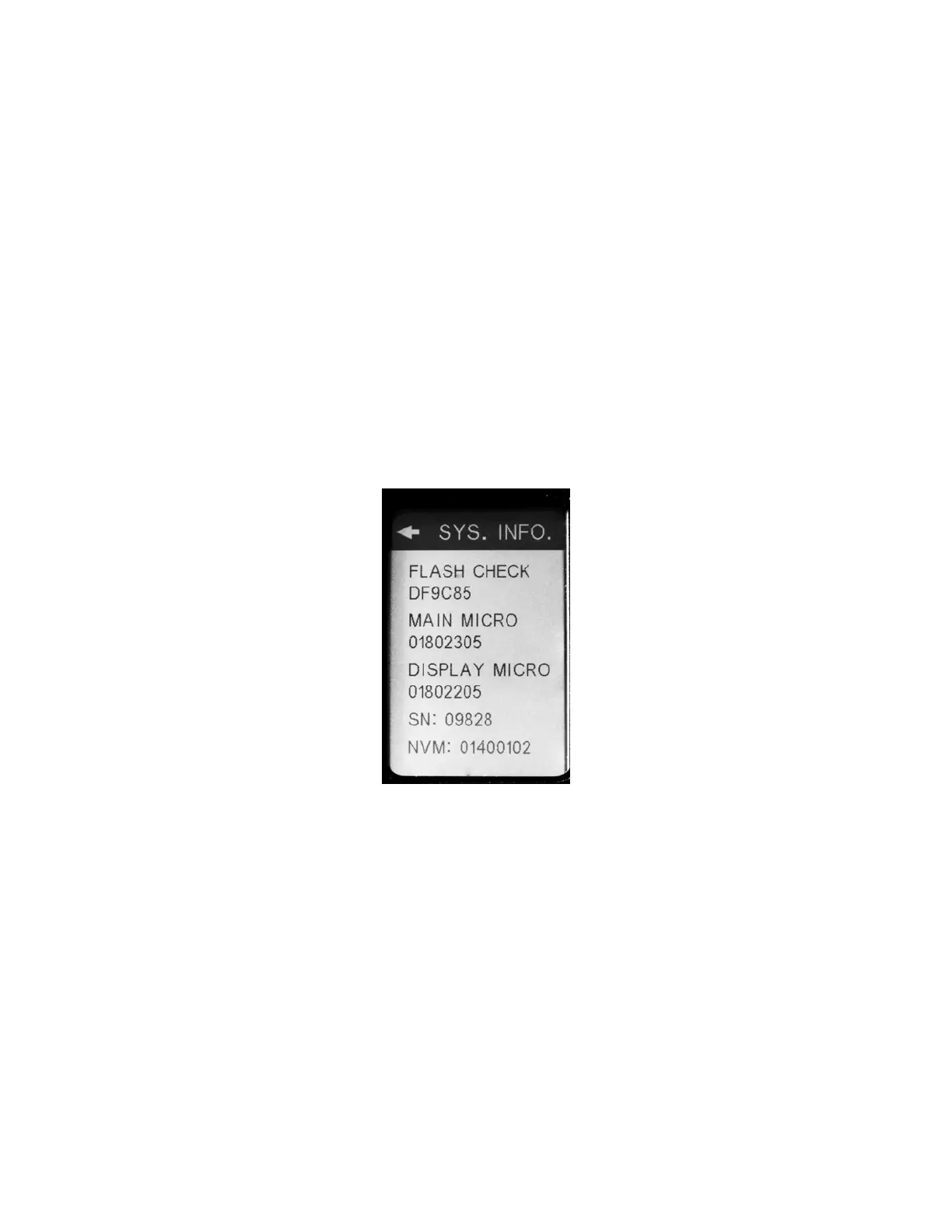

7.1.2.8.6 SystemInfo
Thiswilldisplaythechecksumsandsoftwareversioninformation(Figure21)thatnormallyappear
duringthebootupsequence.

Figure21‐SystemInfoScreen
7.1.2.9 LoggingMenu
TheLOGGINGMENUscreen(Figure22)allowsaccesstoviewingofuptoamaximumofthelast500
acquiredtargetsforthelaser,thelast200FollowingTooClosecaptures,andthelast200self‐tests/boot
tests.
