31


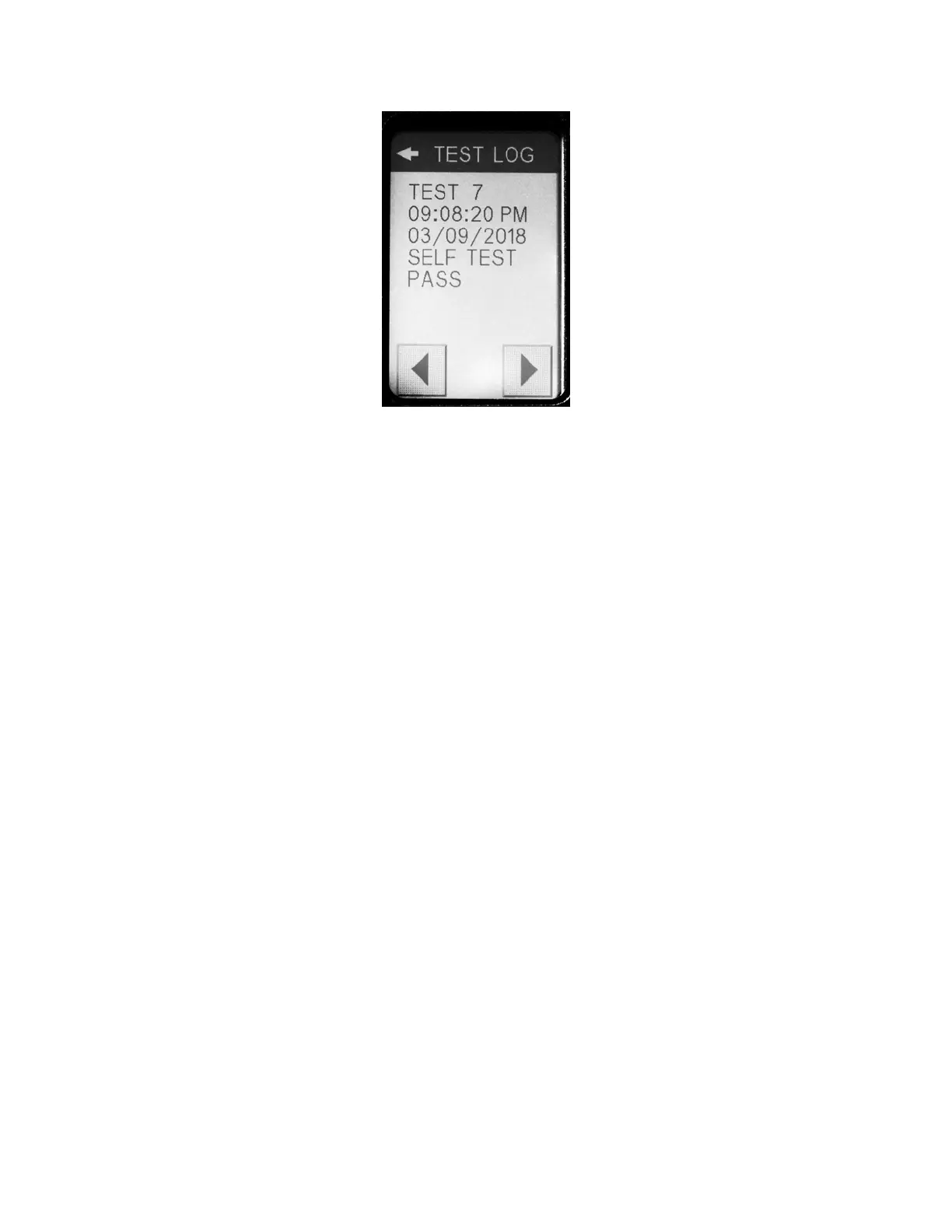

Figure24‐SelfTestLogExampleScreen
TheSELFTESTLOGscreenbeginswiththelasttestrun.Toaccessothertestsinthelog,usetheleftand
rightarrowsatthebottomofthescreentoscrollupordownthelist.
Asmoretestsarerun,thenewesttestdatagetsputtothefront
ofthelistandoldertestresultsmove
downthelist.Once200selftestsandboottestshavebeenstored,theoldesttestresultsareremoved
fromthelistasnewtestresultsareadded.
7.1.2.9.2 ShotLog
Eachshotlogentry(Figure25)willincludethefollowinginformation
forthatshot:
‐ Shotnumberinmemory(highernumbersareoldershots,500recordsmaximum),
‐ Acquiredtargetspeed,
‐ Acquiredtargetspeedunitsofmeasure,
‐ Targetdistance,
‐ Targetdistanceunitsofmeasure,
‐ Directionofthetargetinrelationtothelaser(approachingorreceding),
‐ Date
andtimeoftheshot.
‐ Trackingtimeinseconds.
