Maximum utility charging
current
If “User-Defined” is selected,
battery charge voltage and low DC
cut-off voltage can be set up in
program 17, 18 and 19.

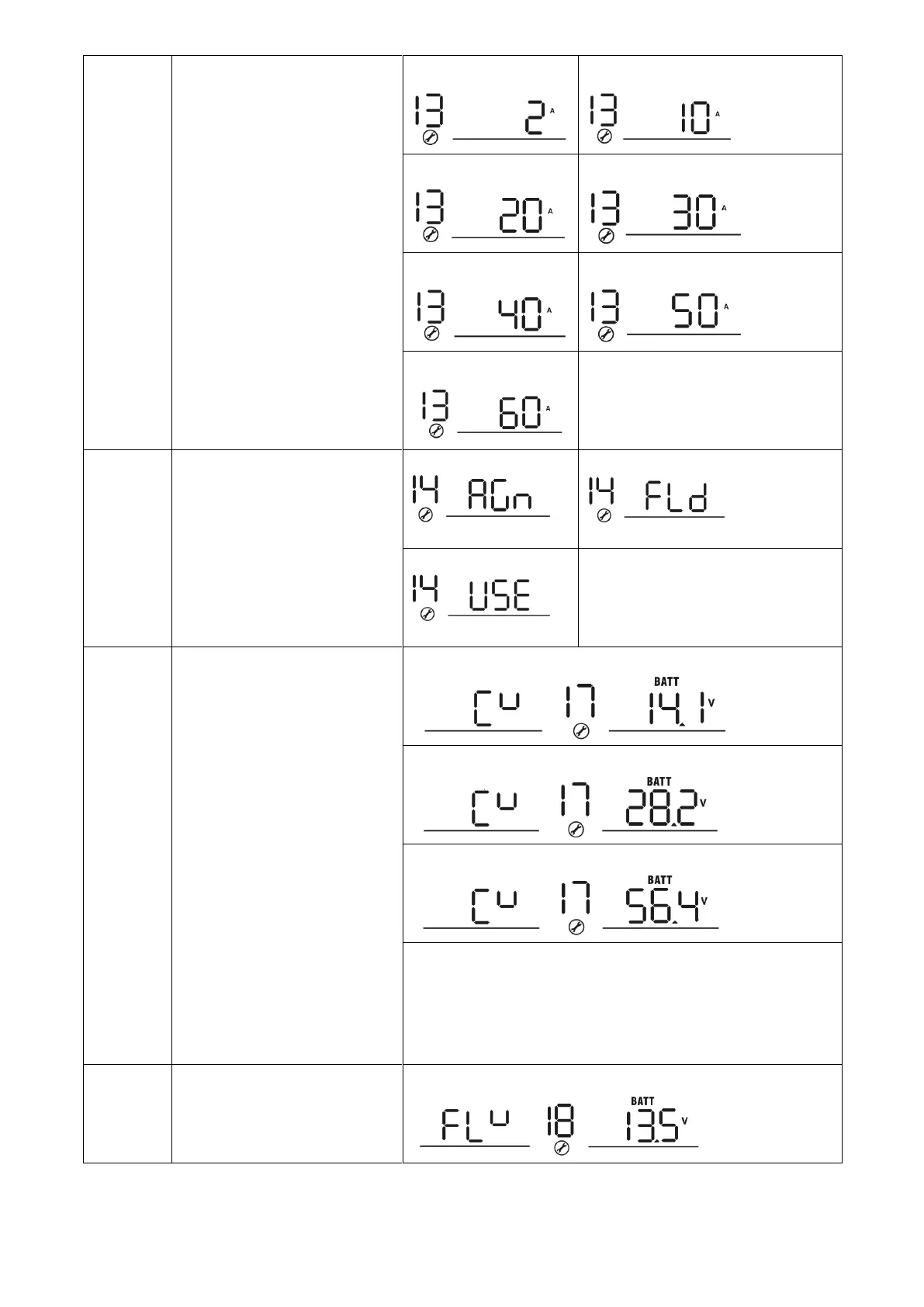

Bulk charging voltage
(C.V voltage)
12V model default setting: 14.1V
24V model default setting: 28.2V
48V model default setting: 56.4V
If self-defined is selected in program 14, this program can be
set up. Setting range is from 12.0V to 15.3V for 12Vdc model,
24.0V to 30.6V for 24Vdc model and 48.0V to 58.4V for 48Vdc
model. Only for 2.4KW model, setting range is from 24.0V to
29.2V. Increment of each click is 0.1V.
Floating charging voltage
12V model default setting: 13.5V
