Recommended breaker specification of AC input:
Model
2 units
3 units
4 units
5 units
6 units
7 units
8 units
9 units
PIP5048MKX
100A
150A
200A
250A
300A
350A
400A
450A
Note1: Also, you can use 40A for only 1 unit and install one breaker at its AC input in each inverter.
Note2: Regarding three-phase system, you can use 4-pole breaker directly and the rating of the breaker
should be compatible with the phase current limitation from the phase with maximum units
Recommended battery capacity
Inverter parallel numbers
2
3
4
5
6
7
8
9
Battery Capacity
800AH
1200AH
1600AH
2000AH
2400AH
2800AH
3200AH
3600AH
WARNING! Be sure that all inverters will share the same battery bank. Otherwise, the inverters will transfer
to fault mode.

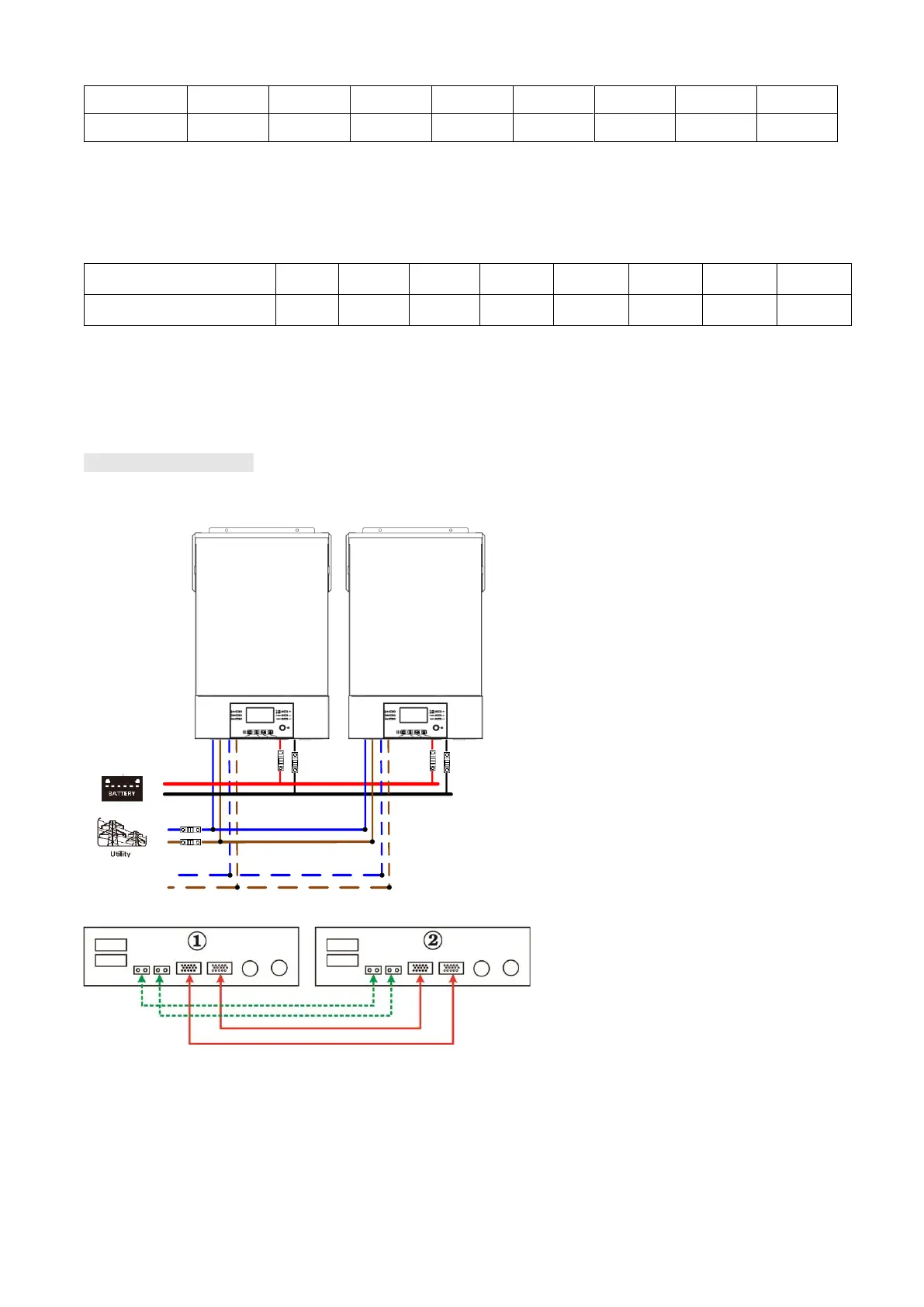

5-1. Parallel Operation in Single phase
Two inverters in parallel:
Power Connection
Load
N
L
N
L
Communication Connection
