HATE(
FEED
lir( OFF
VALVE
STRAINER
Ill
S TEA M
LINE

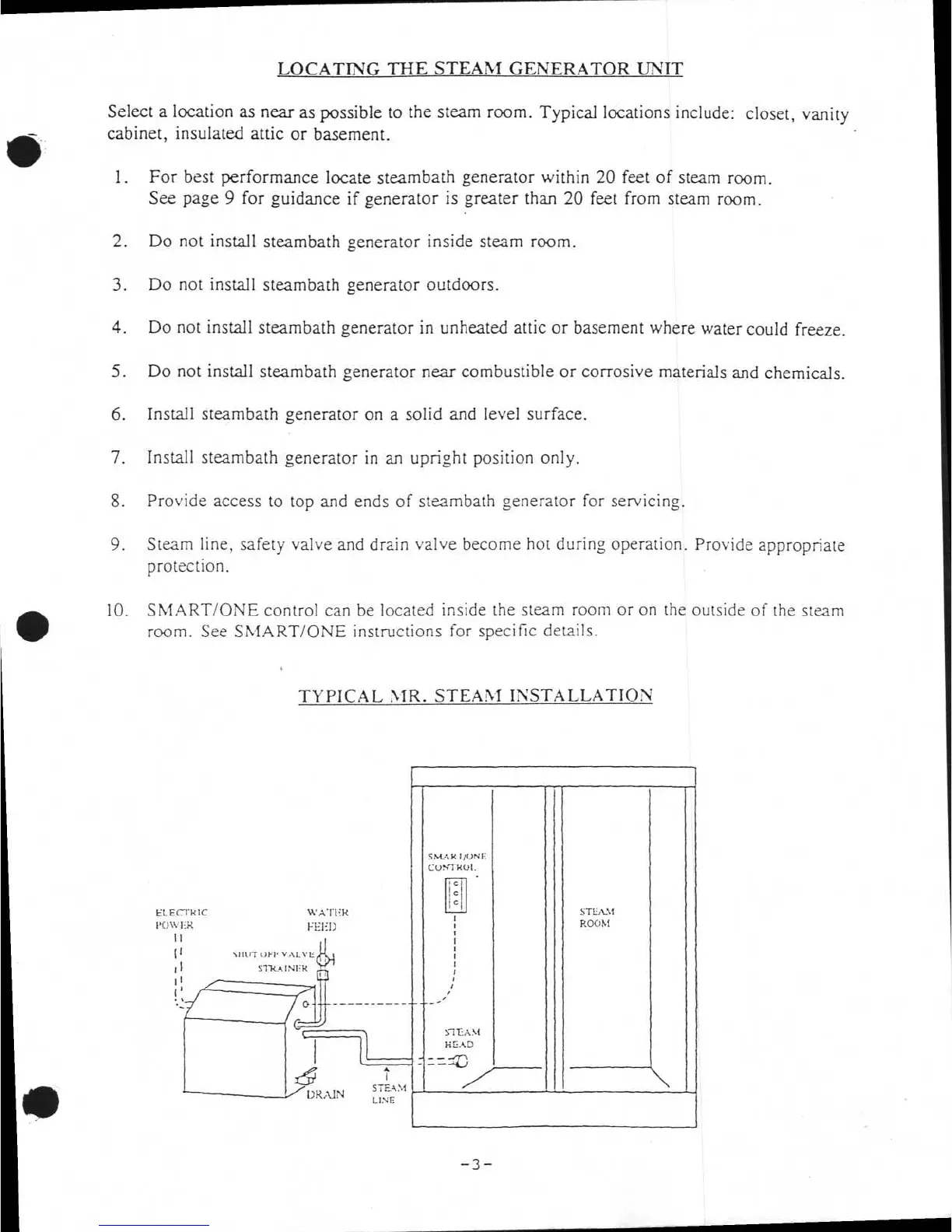

LOCATING THE STEAM GENERATOR UNIT
Select a location as near as possible to the steam room. Typical locations include: closet, vanity
cabinet, insulated attic or basement.
1.
For best performance locate steambath generator within 20 feet of steam room.
See page 9 for guidance if generator is greater than 20 feet from steam room.
2.
Do not install steambath generator inside steam room.
3.
Do not install steambath generator outdoors.
4.
Do not install steambath generator in unheated attic or basement where water could freeze.
5.
Do not install steambath generator near combustible or corrosive materials and chemicals.
6.
Install steambath generator on a solid and level surface.
7.
Install steambath generator in an upright position only.
8.
Provide access to top and ends of steambath generator for servicing.
9.
Steam line, safety valve and drain valve become hot during operation. Provide appropriate
protection.
10.
SMART/ONE control can be located inside the steam room or on the outside of the steam
room. See SMART/ONE instructions for specific details.
TYPICAL MR. STEAM INSTALLATION
SMAR
CON
-
1{401
I
:1
c
1
I
I
I
t
SI
"LAN
HEAD
..,
..rro
1/ONE
STEAM
ROOM
\
...."
7"
-3-
