USE UNIONS WHEN
INSTALLING
1/2" STEAM
OUTLET
3/4" SAFETY
VALVE
1/2" DRAIN VALVE
( SEE INSTRUCTIONS )
Drain
- (1/2" NPT)
NOTE:
A drain valve is provided to facilitate servicing.
Where local codes permit, provide a drain line connection from steambath generator drain
valve. Check plumbing code for receptor, trap and vent required. Unit drains by gravity.
Safety Valve
- (3/4" NPT)
Where permitted by local codes, provide a connection for safety valve.
WARNING:
To insure proper and automatic safety valve operation,
DO NOT
connect shut off
valve to or plug, safety valve outlet.

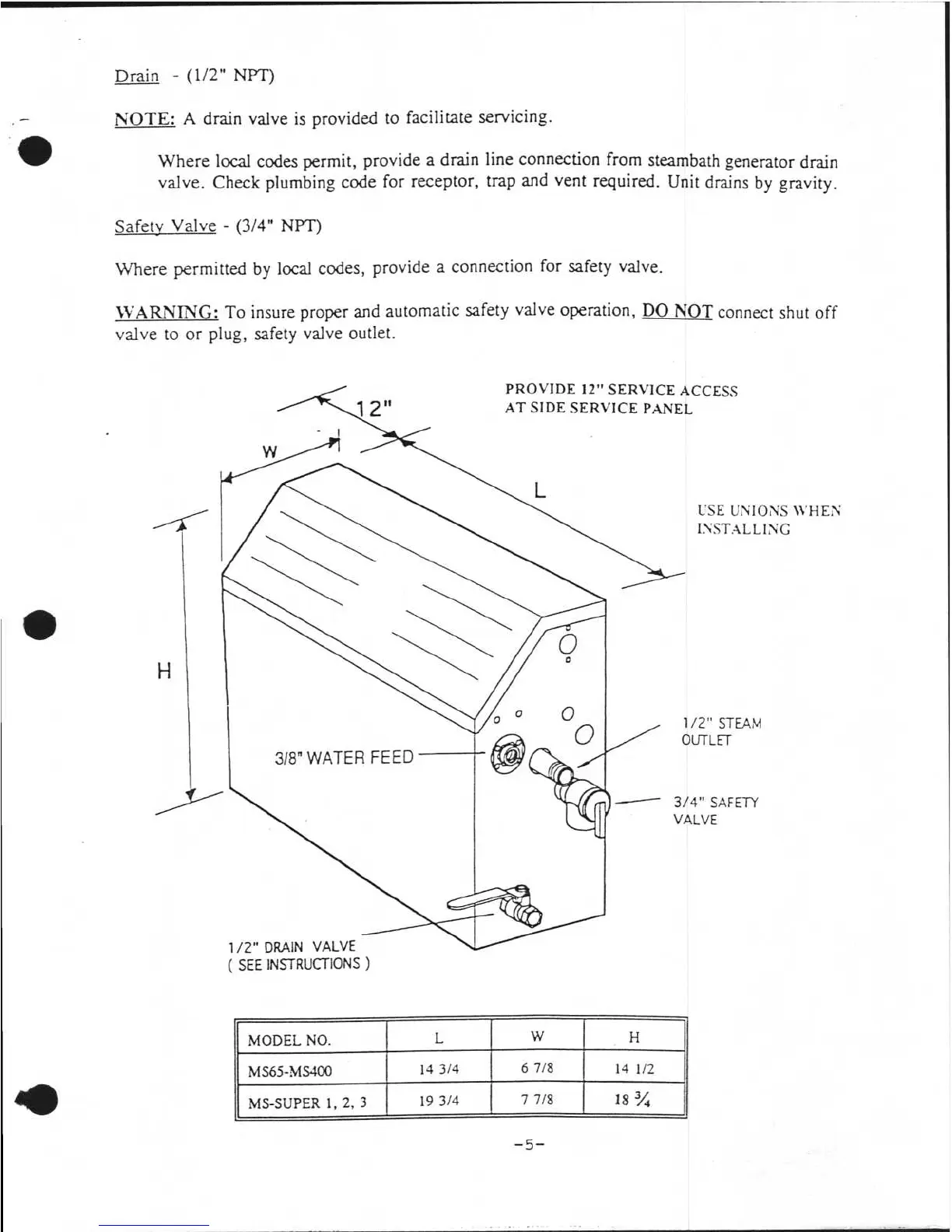

PROVIDE 12" SERVICE ACCESS
1 2"
AT SIDE SERVICE PANEL
•
•
MODEL NO.
L
W
MS65-MS400
14
3/4
6
7/8
14
1/2
MS-SUPER 1, 2,
3
19
3/4
7
7/8
18
3/4
-5-
To Next Page
