4. FRONT PANEL DESCRIPTION

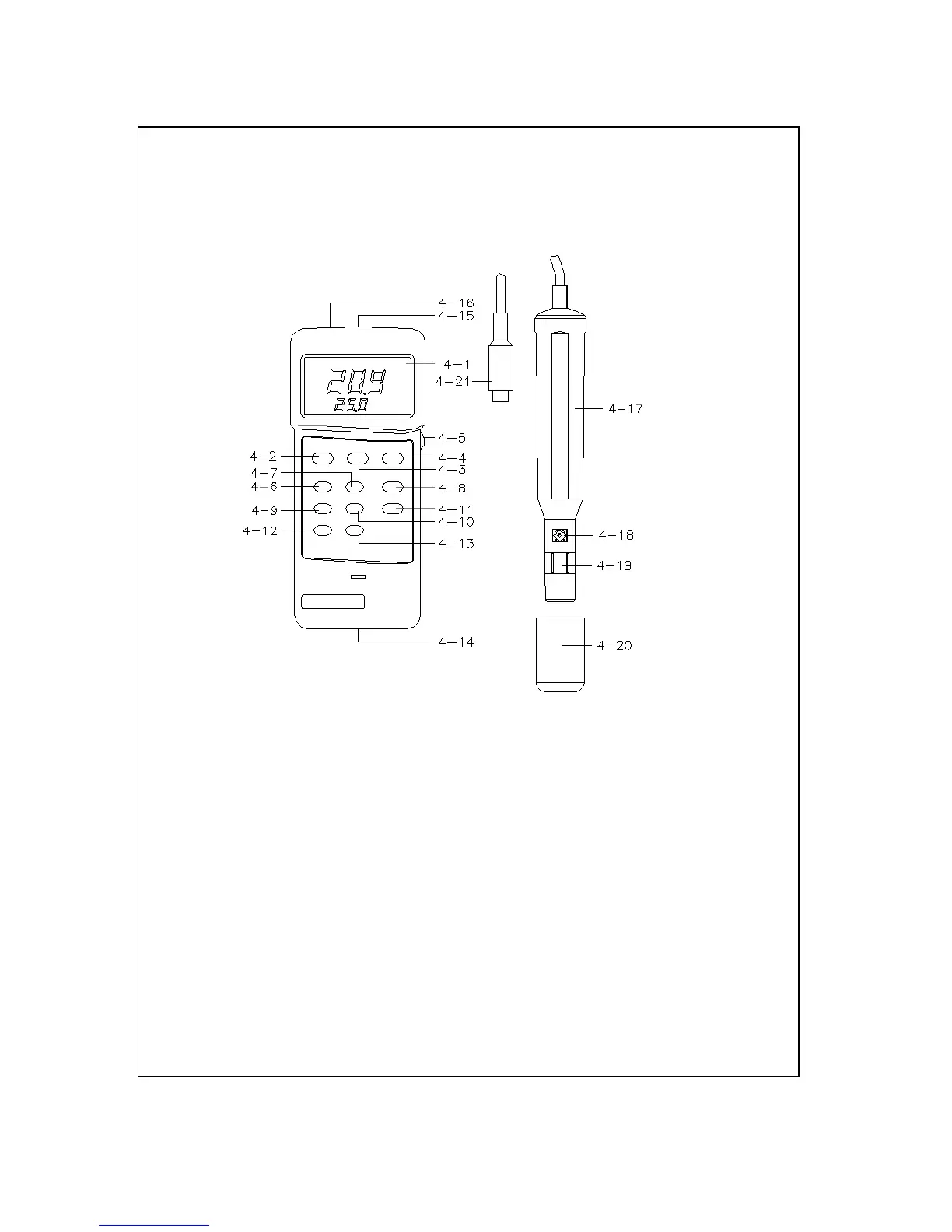

Fig. 1

4-1 Display 4-12 O2 Cal. button

4-2 Power Off/On button 4-13 MT. ( Mountain Height ) button

4-3 Data Hold button 4-14 Battery compartment/cover

4-4 / button℃℉ 4-15 Probe input socket

4-5 LCD Contrast Adjust VR 4-16 RS-232 input terminal

4-6 Memory record button 4-17 Oxygen Probe handle

4-7 Memory call button 4-18 Temperature sensor

4-8 Factor Adj. button 4-19 Probe head with diaphragm

4-9 Zero button 4-20 Protection cover for probe head

4-10 % Salt button 4-21 Oxygen probe plug

4-11 DO/O2 selector
