APPENDIX B: TCIB Connections
INTERSECTOR Microwave Motion and
Presence Sensor Installation Instructions
MS Sedco INTERSECTOR Installation Instructions Page Appendix B INTERSECTOR-1.9Uv092717

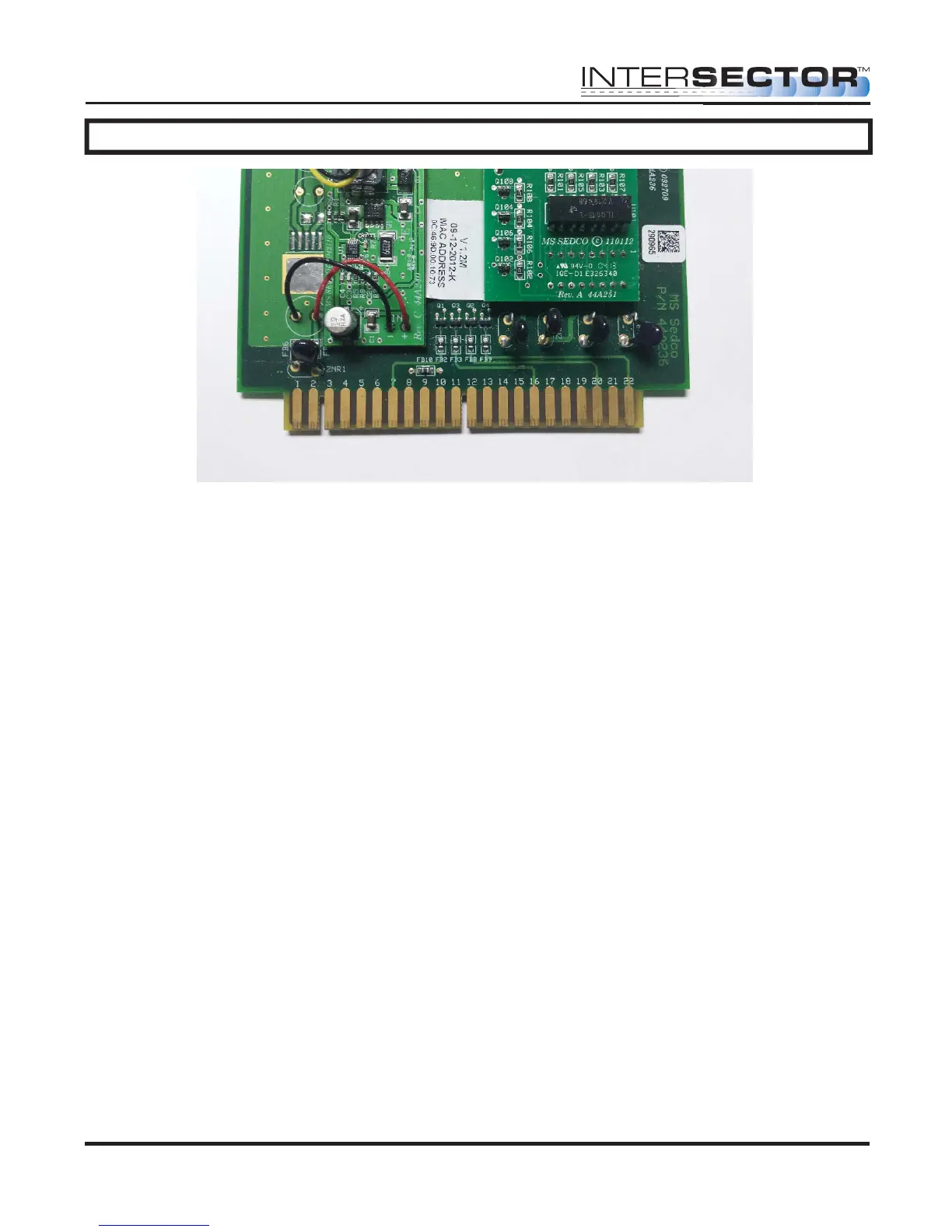

TCIB Pin Out (Blue active)
Pin Function Pin Function
A .................. DC (-) ........................................... 1...................Chl. 1 Phase Green Input
B.................. DC (+) .......................................... 2 ...................Chl. 2 Phase Green Input
C.................. Reset Input ................................. 3...................Chl. 3 Phase Green Input
D.................. Chl. 1 Loop Input........................ 4...................Chl. 1 Loop Input
E .................. Chl. 1 Loop Input........................ 5 ...................Chl. 1 Loop Input
F.................. Chl. 1 Out Drain.......................... 6 ...................No Connection
H.................. Chl. 1 Out Source....................... 7 ...................Chl. 1 TS 2 Status Output
J .................. Chl. 2 Loop Input........................ 8...................Chl. 2 Loop Input
K.................. Chl. 2 Loop Input........................ 9...................Chl. 2 Loop Input
L .................. Chassis Ground ......................... 10 .................Chl. 4 Phase Green Input
M.................. No Connection ........................... 11 .................No Connection
N.................. No Connection ........................... 12 .................No Connection
P.................. Chl. 3 Loop Input........................ 13 .................Chl. 3 Loop Input
R.................. Chl. 3 Loop Input........................ 14.................Chl. 3 Loop Input
S .................. Chl. 3 Out Drain.......................... 15 .................No Connection
T.................. Chl. 3 Out Source....................... 16 .................Chl. 3 TS 2 Status Output
U.................. Chl. 4 Loop Input........................ 17.................Chl. 4 Loop Input
V.................. Chl. 4 Loop Input........................ 18 .................Chl. 4 Loop Input
W................. Chl. 2 Out Drain.......................... 19 .................No Connection
X .................. Chl. 2 Out Source....................... 20 .................Chl. 2 TS 2 Status Output
Y.................. Chl. 4 Out Drain.......................... 21.................No Connection
Z .................. Chl. 4 Out Source....................... 22 .................Chl.4 TS 2 Status Output
