MSA DR-209M - Page 33

Universal digital repeater
DR-209M
Page 33

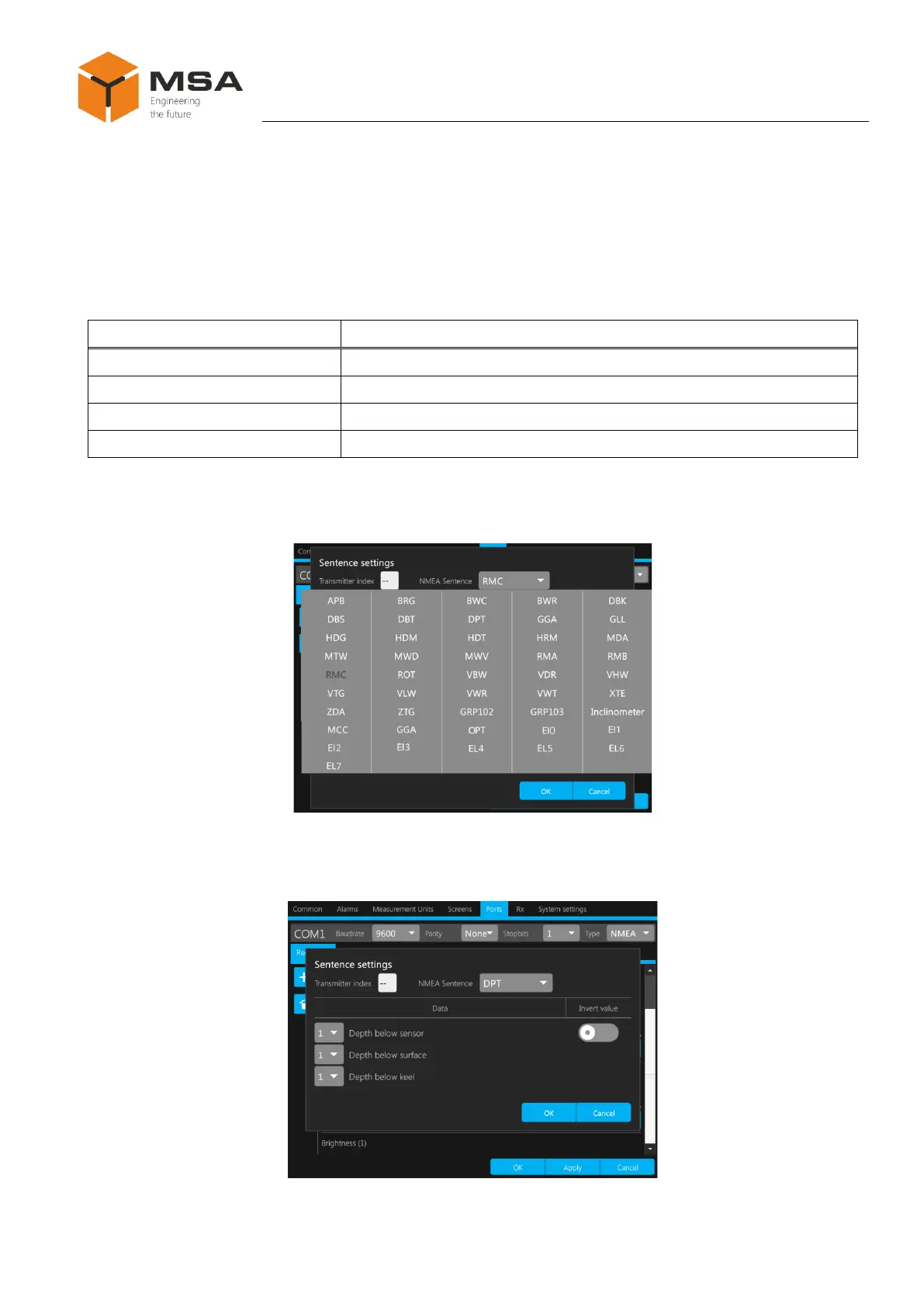

2.3.13.2 Settings and editing NMEA sentences
To set / edit type of NMEA data, press a button to select the sentence, see
Figure 25.
The controls of Settings suggestions tab page are represented in Table 21.
Table 21 – The controls of Settings suggestions
Name
Function
ОК
To confirm the select
Cancel
To cancel the selected settings
Transmitter index
To set a transmitter index
NMEA sentence
To select NMEA sentence out of drop-down list
In the drop-down list select a type of sentence for reception (transmission) by this
port, see Figure 25.
Figure 25 – Select of NMEA sentences
Set up a transmitter index, and other sentence parameters, see Figure 26.
Figure 26 – Settings of NMEA sentence
