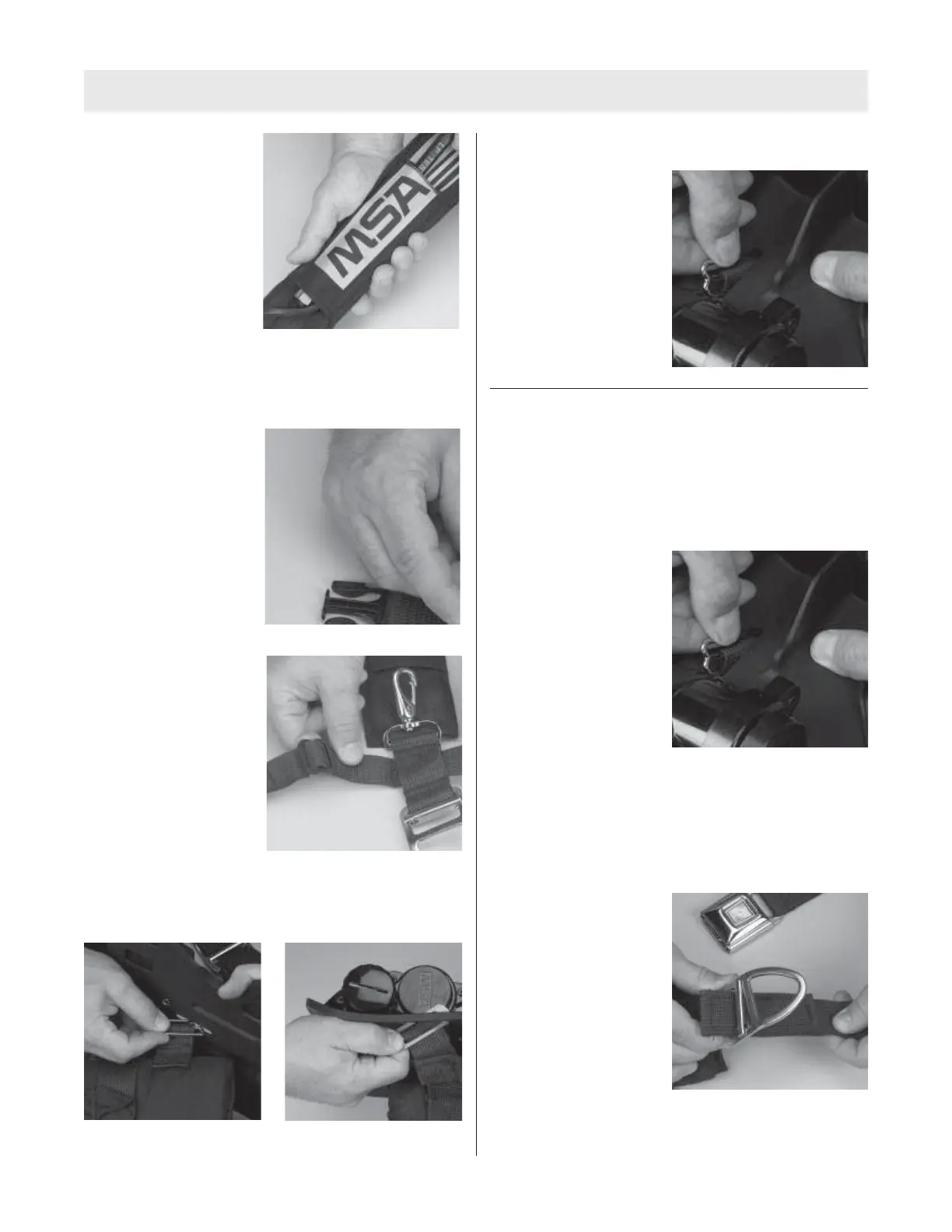

2. Pull the first stage
intermediate pressure
hose through the
shoulder strap.
3. Remove the pull-strap from the friction buckle.
Removing the Chest Strap
1. Unlace the ends of the
chest strap from the
slide buckles.
2. Pull the ends through
through the tunnels in
the chest straps.
Removing Waist Belts
Remove the waist pull-straps from the backplate by
angling the tri-bar through the slots.
Removing the Swiveling Lumbar Pad
1. Remove the Swiveling
Lumbar Pad by angling
the tri-bars through the
backplate slots.
REASSEMBLY
Installing the Swiveling Lumbar Pad
P/N 10083134
1. Position the Swiveling Lumbar Pad behind the
backplate with the curved edge up.
2. Angle the tri-bars
through the slots.
Installing Waist Belts
Left Double Pull Waist Belt: P/N 10025941
Right Double Pull Waist Belt: P/N 818374
1. Angle the tri-bar strap through the slot.
2. Tug on the belt to test the attachment.
3. From back to front,
lace the free end of the
pull-strap through the
friction buckle.
TAL 8012 (L) Rev. 2 - 10093081
7
FIREHAWK M7 CARRIER AND HARNESS ASSEMBLY
