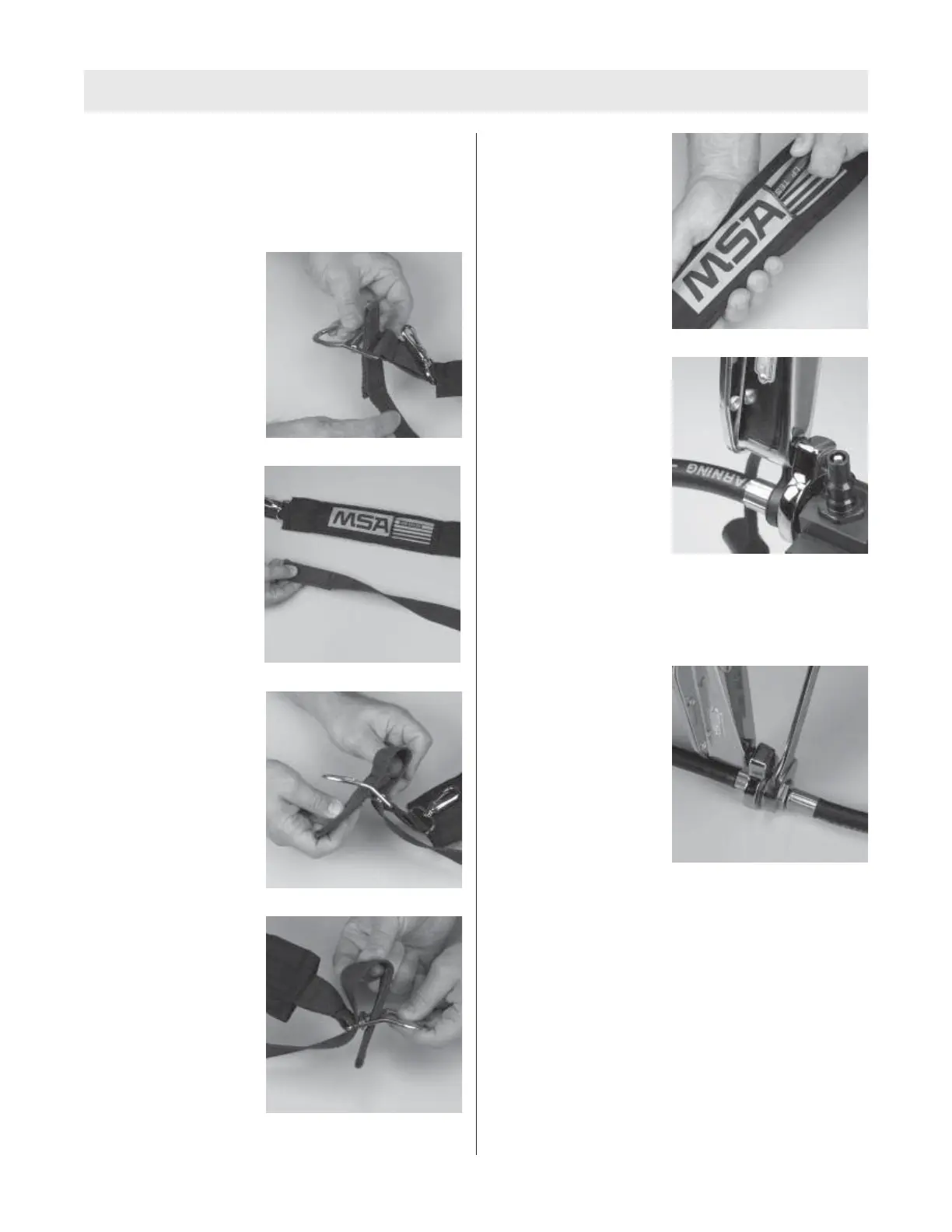

Installing the Left Shoulder Strap
P/N 10048173
1. Install the shoulder strap by angling the tri-bar through
the slot.
2. Tug on the shoulder strap to test the attachment.
4. Lace the free end of
the pull-strap through
the friction buckle.
a. Twist the strap
clockwise one half
turn.
b. With the fold down,
pass the strap from
back to front through
the buckle.
c. Pass the strap over
the bar and back
through the buckle.
d. Pass the first stage
intermediate-pressur e
hose through the
tunnel.
5. Reinstall the
intermediate pressure
hose to the M7
ExtendAire manifold.
a. Install a new o-ring.
b. Use a torque wrench with 11/16” crowfoot to
tighten the connector to 75±5inlbs.
c. Ensure that the dust cover is properly attached.
6. Reconnect the
intermediate-pressure
hose.
a. Use a torque wrench with 11/16” crowfoot to
tighten the connector to 125±5inlbs.
TAL 8012 (L) Rev. 2 - 10093081
9
FIREHAWK M7 CARRIER AND HARNESS ASSEMBLY
