IDE RAID Connectors: IDE3 & IDE4 (Optional)
The mainboard offers a low-cost RAID (Redundant Array of Indepen-
dent Disks) solution by integrating two IDE RAID connectors that support
PIO mode 0-4, Bus Master, and Ultra DMA 33/66/100 modes. The IDE RAID
connectors allow you to connect Ultra ATA/DMA hard disks and use RAID
technology for high performance, data security and fault tolerance. The con-
nectors support RAID 0 (striping) and RAID 1 (mirroring).
IDE RAID Connectors
- You can connect a Master and a Slave drive to each IDE RAID connector.
- The two connectors support hard disk drives only.
- For more information on IDE RAID, please refer to IDE RAID Manual.
(Please note only two of the hard disk drives will adopt RAID function.)
!TIP:
If you install two hard disks on cable, you must configure the second
drive to Slave mode by setting its jumper. Refer to the hard disk docu-
mentation supplied by hard disk vendors for jumper setting instructions.

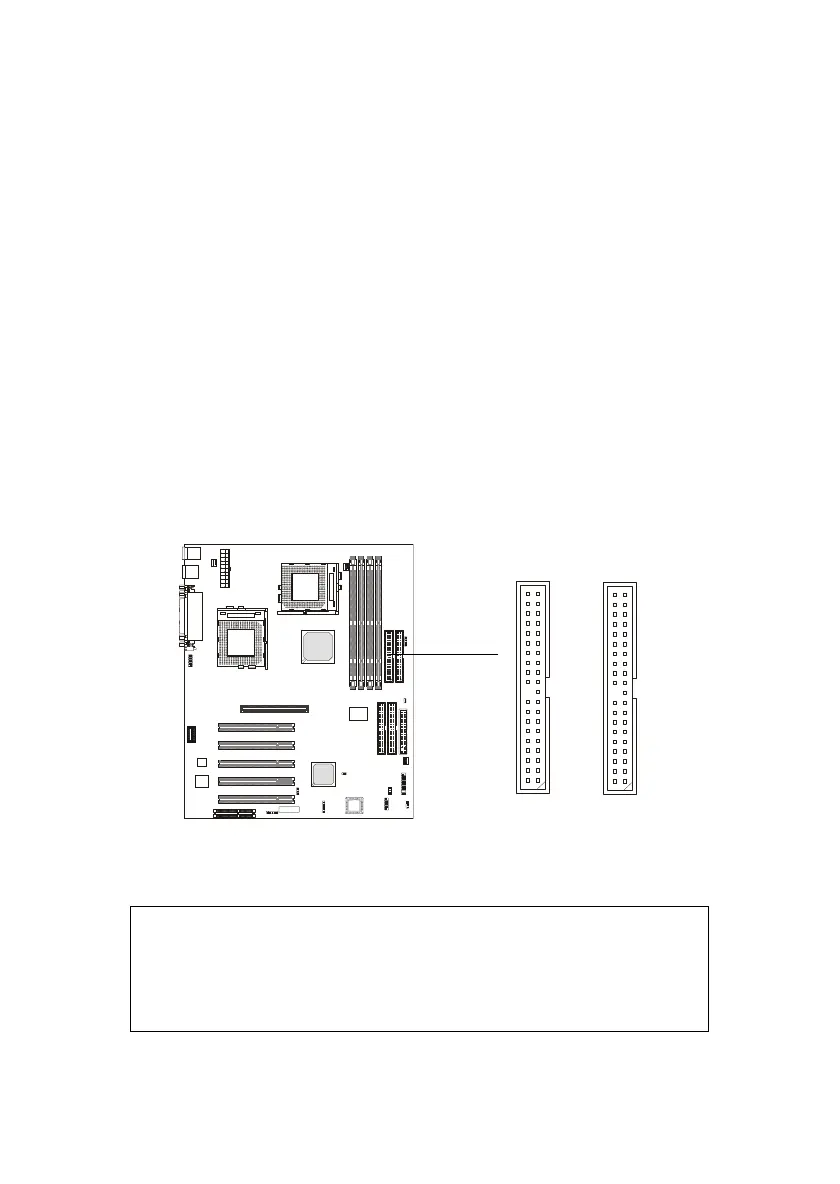

IDE 4 (ATA100-2)
1
2
40 39
1
2
40
39
IDE 3 (ATA100-1)
