23
Overview of Components
M2_1~4: M.2 Slots (Key M)
M2_1
M2_2
M2_3
M2_4
Video Demonstration
Watch the video to learn how to
Install M.2 module.

Installing M.2 module

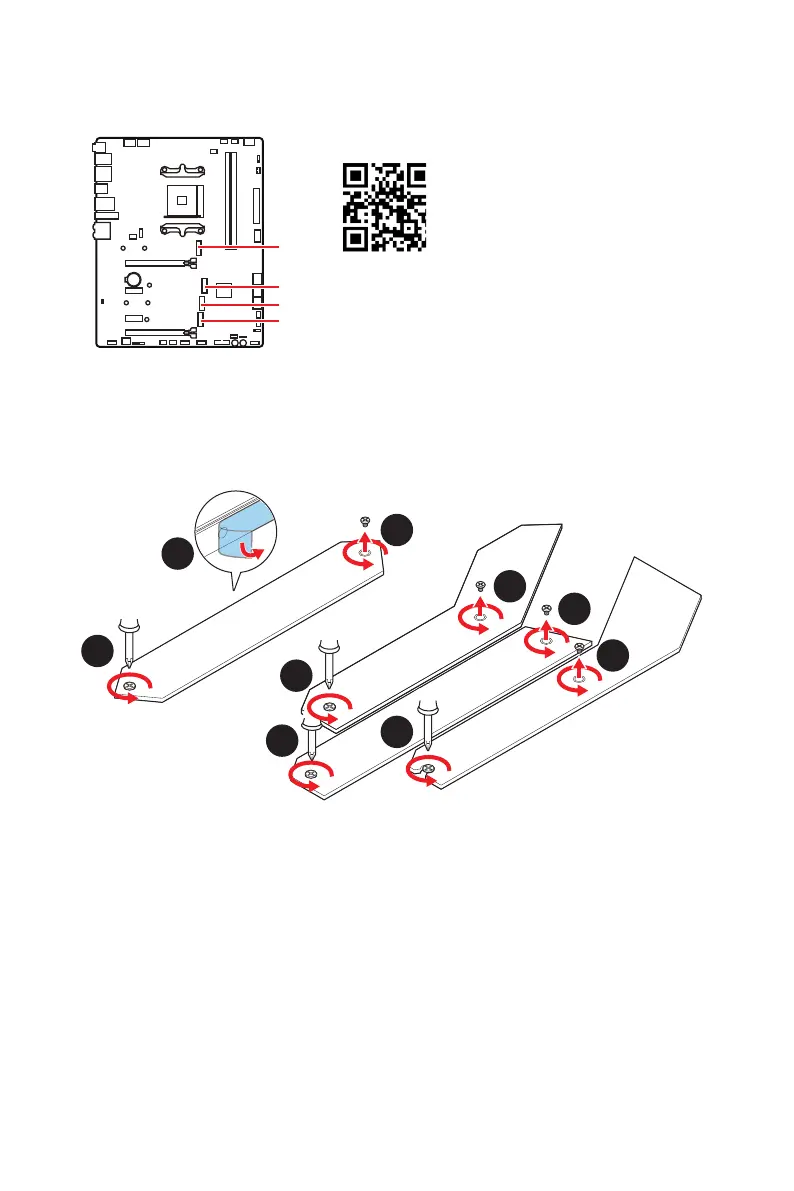

1. Loosen the screws of M.2 SHIELD FROZR heatsink.
2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads.
2
1
1
1
1
1
1
1
3. M2_1 and M2_3 slots are equipped with one standoff. To avoid damage to the M.2

4. There are two thermal pads on each M.2 slot base plate. The thermal pad-2 is
fixed on the M.2 Plate and should not be removed.

film.

1
Important
Pictures shown in this section are for illustration purpose only and may differ from
the actual plates and thermal pads.


