35
Overview of Components

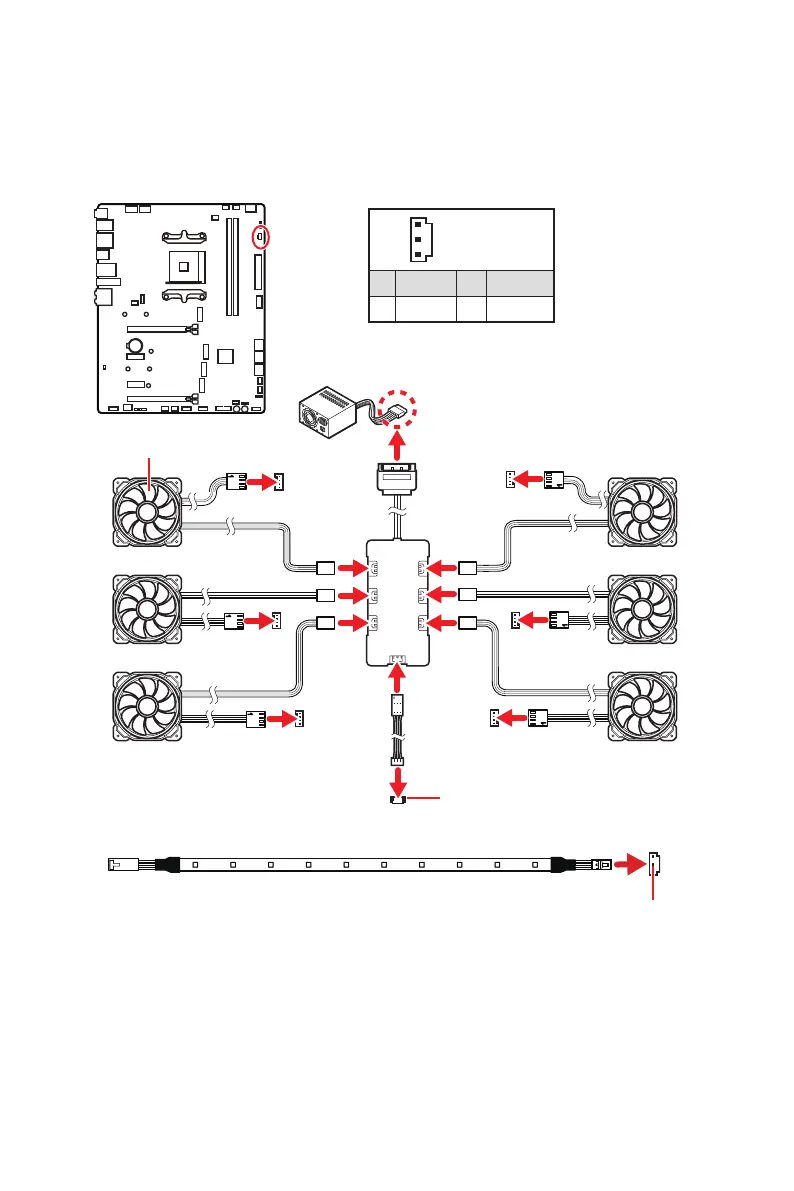

JCORSAIR1: CORSAIR Connector
LED strips and fans with MSI's software.
1
1 +5V 2 Data
3 Ground
CORSAIR RGB Fan Connection
Important
Fans must start at 1 and continue in series. 1 > 2 > 3 > 4 > 5 > 6. Any fan not
connected in series will break communication and the RGB LED lighting function will
not work.
Quantity of RGB LED Fans or RGB LED Lighting PRO strips supported may differ
between models. Please refer to the motherboard specification.
time.
SYS_FAN
SYS_FAN
SYS_FAN
SYS_FAN
SYS_FAN
SYS_FAN
1
2
34
5
6
SATA power
CORSAIR Lighting Node PRO Connection
