33
Overview of Components
Important
The JRGB connector supports up to 2 meters continuous 5050 RGB LED strips

Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the RGB LED strip.


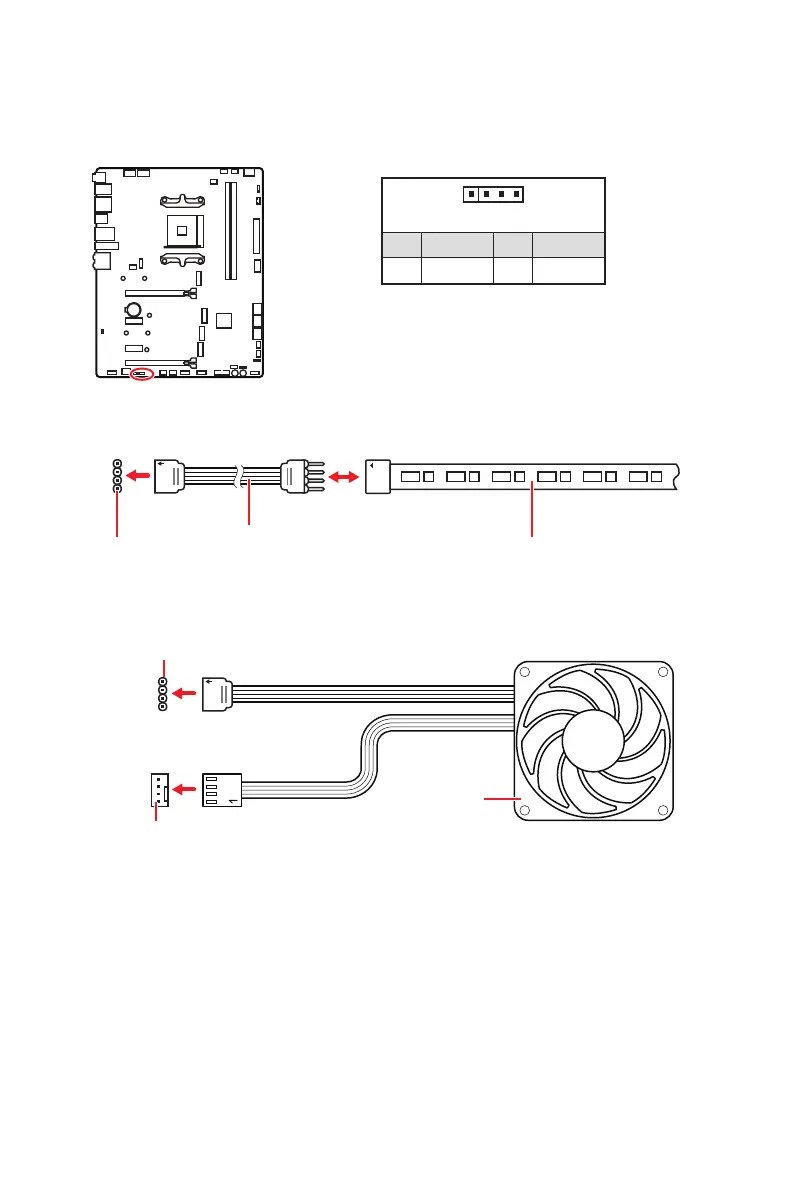

JRGB1: RGB LED connector
The JRGB connector allows you to connect the 5050 RGB LED strips 12V.
1
G
R
B
JRGB
connector
RGB extension
cable
5050 RGB LED strips 12V
1
1 +12V 2 G
3 R 4 B
RGB LED Strip Connection
1
1
G
R
B
JRGB connector
System Fan connector
RGB LED Fan Connection
RGB LED Fan
