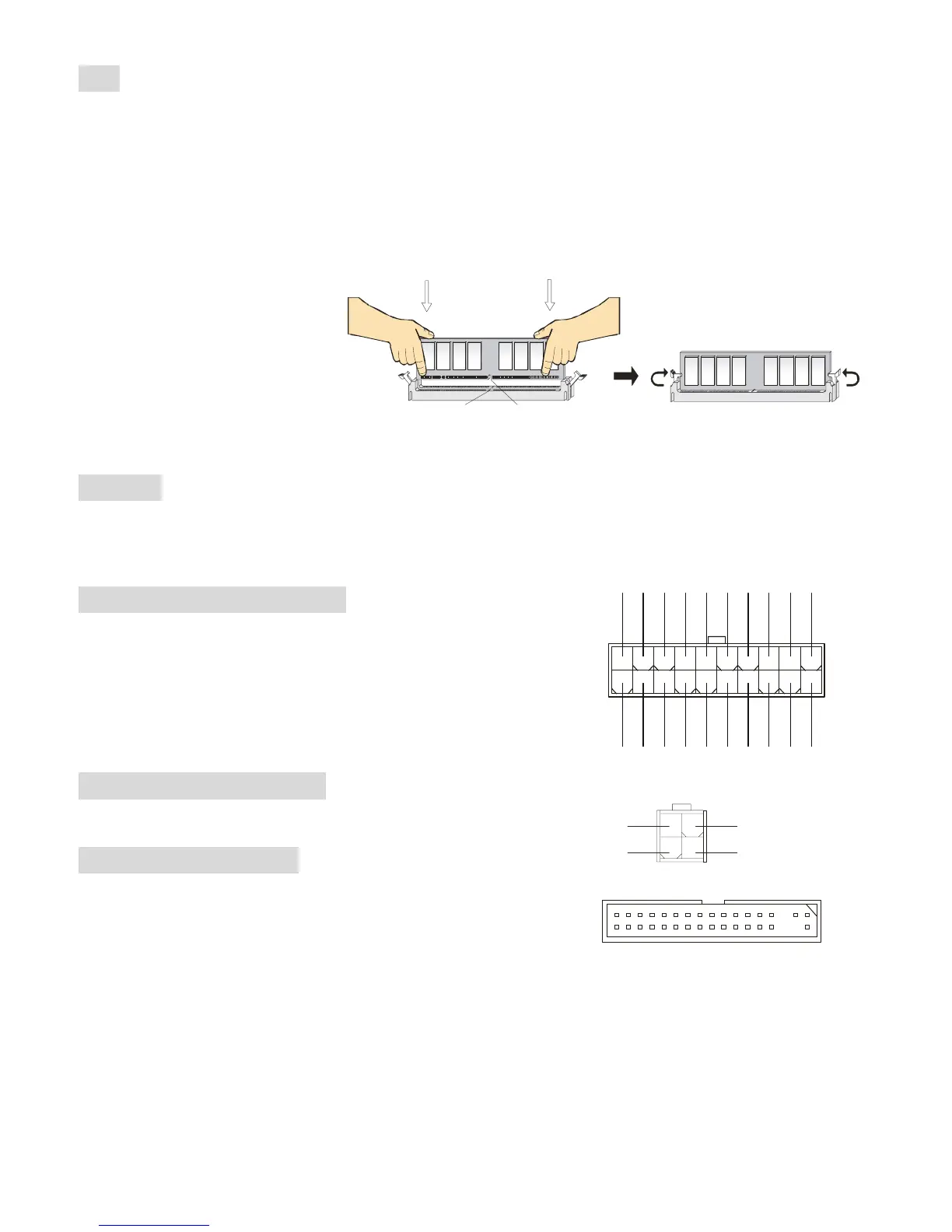

51
内存
本主板提供了 2 /3 条内存插槽,支持 184-pin2.5V DDR DIMM 的内存模组,最多可支持 ECC 的内存
2 GB/3GB。您可安装 DDR266/DDR333/DDR400 DDR SDRAM 模组在 DDR DIMM 插槽中。您至少要安
装一条内存在插槽,以保证系统正常工作。
(要了解内存模组支持的更新,请访问
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php
1. DDR DIMM 内存条的中央
仅有一个缺口。
2. DDR 内存垂直插 DDR 插槽
中,并确保缺口的正确位置。
3. DIMM 插槽两边的塑料卡口会自动闭合。
电源供应
主板使用 ATX 结构的电源供应器给主板供电。在连接电源供应器之前请务必确认所有的组件都已正确安装
并且不会造成损坏。
ATX 20-Pin 电源接口:AT X1
此接口可连接 ATX 电源供应器在与 ATX 电源供应器相连时请务必
确认电源供应器的接头安装方向正确针脚对应顺序也准确无误。
将电源接头插入,并使其与主板电源接口稳固连接
ATX 12V 电源接口:JPW1
12V 电源接口用于 CPU 供电
软盘驱动器接口FDD1
主板提供了一个标准的软盘驱动器接口 FDD支持 360K720K1.2M
1.44M 2.88M 的软盘驱动器。
1
11
3.3V
3.3V
3.3V
-12V
GND
GND
GND
GND
GND
GND
GND
PW_OK
-5V
5V_SB
5V
5V
12V
5V
PS_ON
5V
10
20
NotchVo lt
1
3
2
4
GNDGND
12 V
12 V
