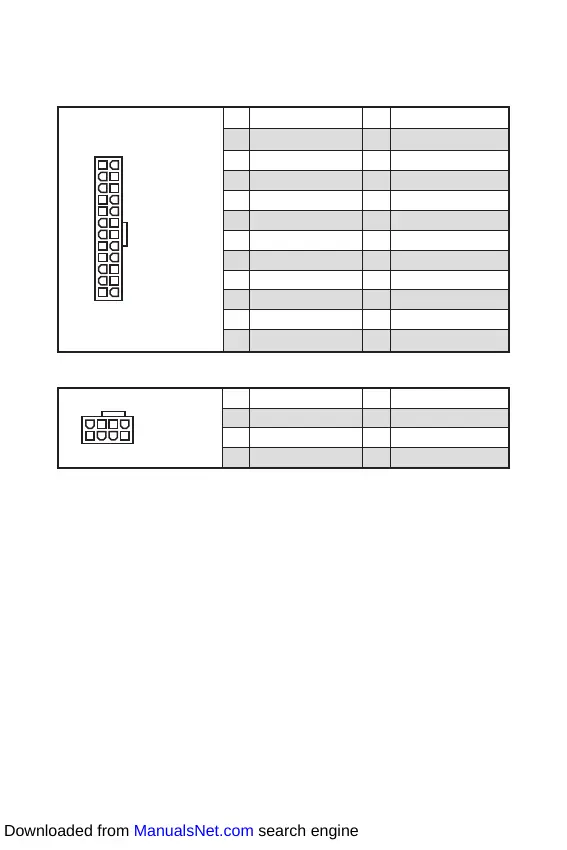

MSI B560M PRO WIFI - Atx_Pwr1, Cpu_Pwr1: 电源接口


󶵪󱠁󴚯󸷇 󶵪󱠁󴚯󸷇
󵭳󴽦󳲝󲁅
󸶓󱝬󳲝󲁅󱯬󸜡󳞄󸶚󳲝󱚋󱛅󵭳󴽦󱣼󳏢󲑠

󴳈󳠵
󶃥󸜍󳩢󴊇󳲝󲁅󹀎󳋞󴨟󶃥󵷜󸶚󳲝󱵰󵭳󴽦󱣼󳏢󲑠󱚗󽚟󱟨󶃥󱥦󱛞󴍇󶏼󲹥󵷜󸵼󸂈
24
131
12
ATX_PWR1
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 Ground 15 Ground
4 +5V 16 PS-ON#
5 Ground 17 Ground
6 +5V 18 Ground
7 Ground 19 Ground
8 PWR OK 20 Res
9 5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 Ground
5
4
1
8
CPU_PWR1
1 Ground 5 +12V
2 Ground 6 +12V
3 Ground 7 +12V
4 Ground 8 +12V
