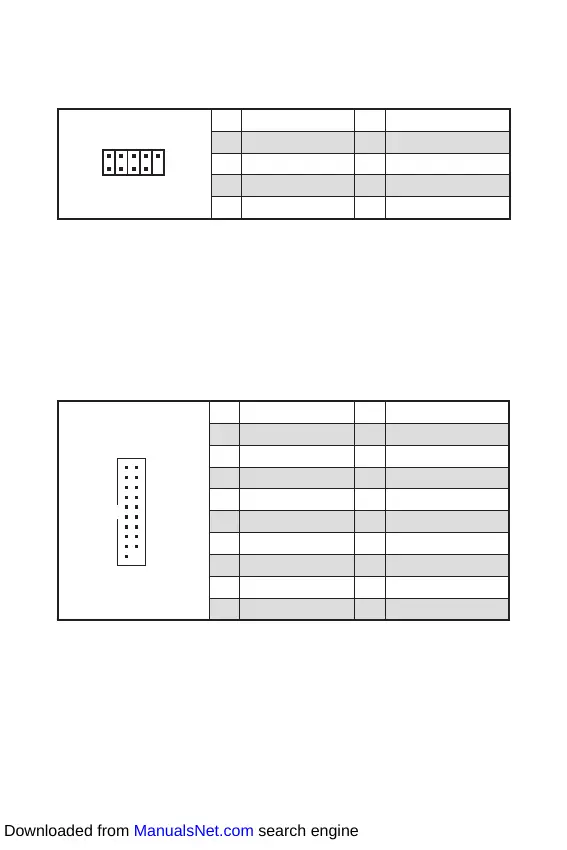

This connector allows you to connect USB 3.2 Gen 1 5Gbps ports on the front panel.

10 11

1 Power 11 USB2.0+

2 USB3_RX_DN 12 USB2.0-

3 USB3_RX_DP 13 Ground

4 Ground 14 USB3_TX_C_DP

5 USB3_TX_C_DN 15 USB3_TX_C_DN

6 USB3_TX_C_DP 16 Ground

7 Ground 17 USB3_RX_DP

8 USB2.0- 18 USB3_RX_DN

9 USB2.0+ 19 Power

10 Ground 20 No Pin





Note that the Power and Ground pins must be connected correctly to avoid possible

damage.



These connectors allow you to connect USB 2.0 ports on the front panel.







Note that the VCC and Ground pins must be connected correctly to avoid possible

damage.



In order to recharge your iPad, iPhone and iPod through USB ports, please install

MSI® Center utility.

2 10

1 VCC 2 VCC

3 USB0- 4 USB1-

5 USB0+ 6 USB1+

7 Ground 8 Ground

9 No Pin 10 NC
