MSI B560M PRO WIFI User Manual

8


Status 
Off No link
Yellow Linked
Blinking Data activity

Status 
Off 10 Mbps connection
Green 100/1000 Mbps connection
Orange 2.5 Gbps connection


To configure 7.1-channel audio, you have to connect front audio I/O module to JAUD1
connector and follow the below steps.
 Click on the  to open the dialog
below.
 Select .
 Plug your speakers to audio jacks on rear and front I/O panel. When you plug into
a device at an audio jack, a dialogue window will pop up asking you which device
is current connected.


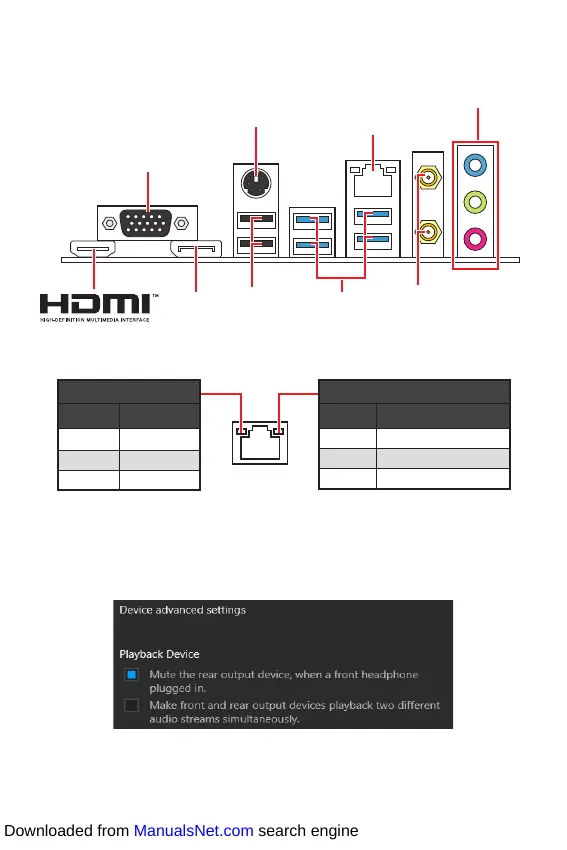

PS/2 Mouse/
Keyboard
2.5Gbps LAN
Audio Ports
USB 2.0
Type-A
DisplayPort
VGA Port
USB 3.2
Gen 1
(5Gbps)
Type-A
Wi-Fi Antenna
connectors
Downloaded from ManualsNet.com search engine

MSI B560M PRO WIFI Specifications

General

Chipset	Intel B560
Form Factor	Micro ATX
Socket	LGA 1200
Memory Slots	4 x DIMM
Max Memory	128 GB
LAN	Realtek RTL8125B 2.5Gbps
Audio Codec	Realtek ALC897
PCIe Slots	1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
Storage Interface	6 x SATA 6Gb/s
Wireless	Wi-Fi 6
Bluetooth	5.1
Video Outputs	1 x HDMI, 1 x DisplayPort
USB Ports	6 x USB 3.2 Gen 1, 6 x USB 2.0
