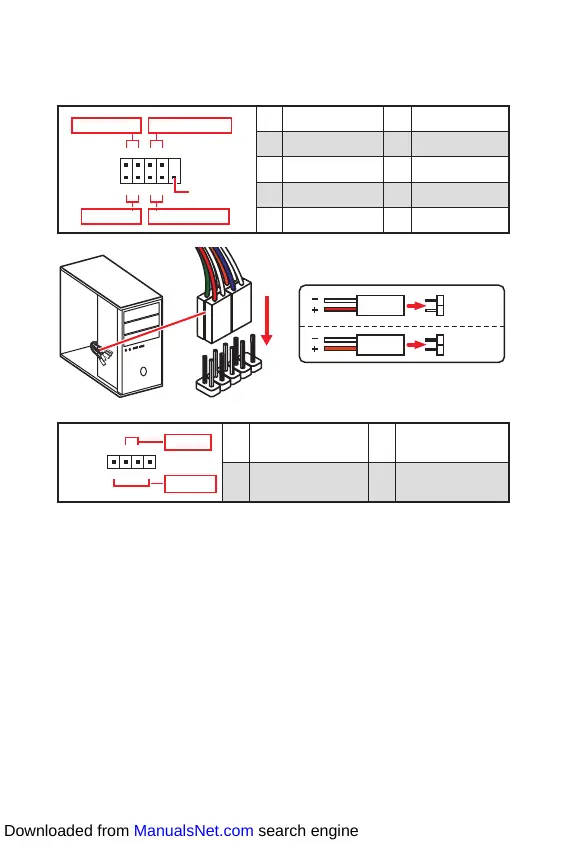

Diese Anschlüsse verbinden die Schalter und LEDs des Frontpanels.
1
2 10
9
+
+
+- -- -
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
JFP2
1
+
+
-
-
Speaker
Buzzer
1 Speaker - 2 Buzzer +
3 Buzzer - 4 Speaker +
HDD LED
RESET SW
HDD LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
JFP1
Downloaded from ManualsNet.com search engine

MSI B560M PRO WIFI Specifications

General

Chipset	Intel B560
Form Factor	Micro ATX
Socket	LGA 1200
Memory Slots	4 x DIMM
Max Memory	128 GB
LAN	Realtek RTL8125B 2.5Gbps
Audio Codec	Realtek ALC897
PCIe Slots	1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
Storage Interface	6 x SATA 6Gb/s
Wireless	Wi-Fi 6
Bluetooth	5.1
Video Outputs	1 x HDMI, 1 x DisplayPort
USB Ports	6 x USB 3.2 Gen 1, 6 x USB 2.0
