FX5700-VTDR256/VTDR128

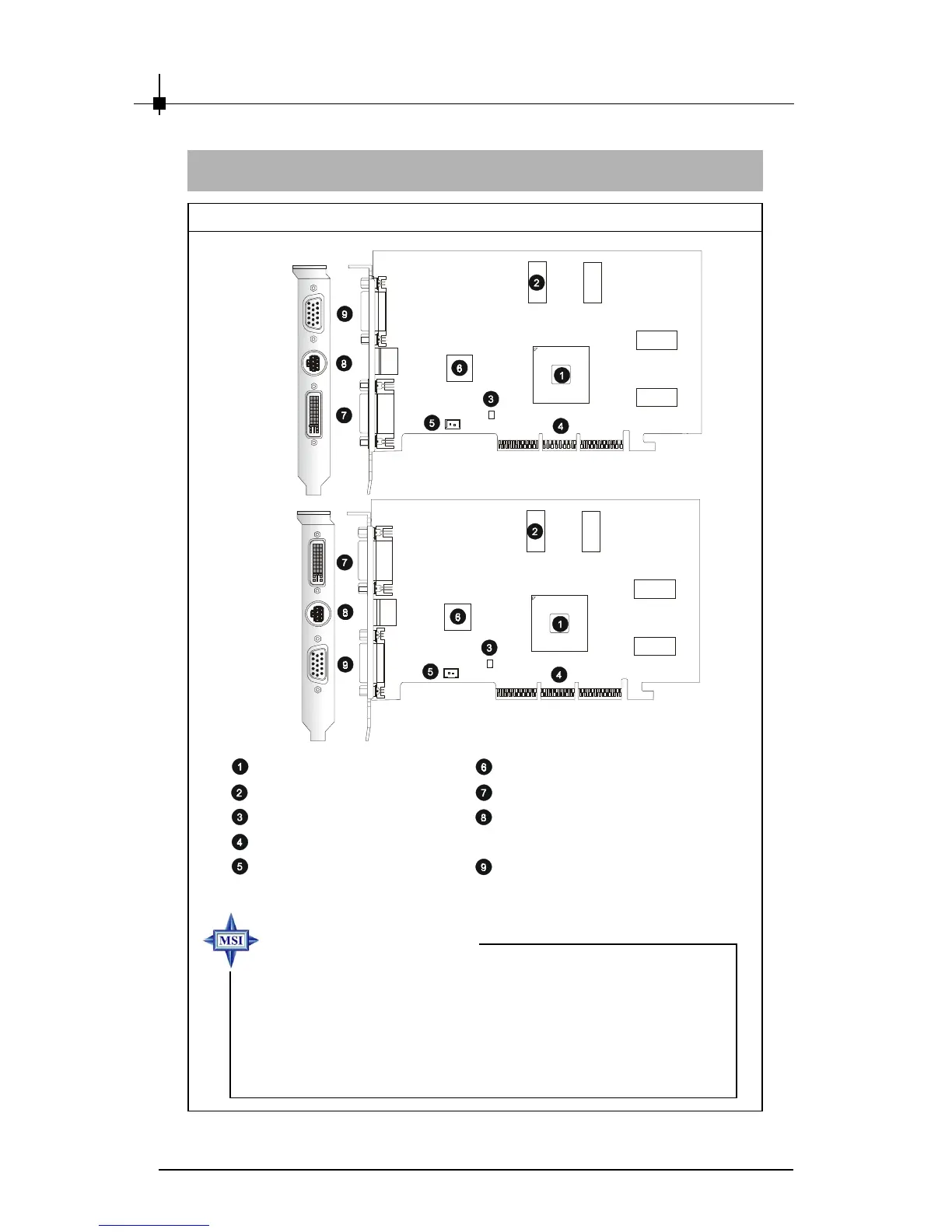

Layout

TypeA

TypeB

nVIDIA GeForce FX GPU

256MB/128MB DDR RAM

Flash-BIOS

AGP Interface

Fan Connector

Video Decoder

DVI-I Connector

TV_Out / Video_In Connector

(S&C) + Remote Receiver

D-Sub Port (DB 15-Pin)

MSI reminds you...

For those users who purchase Type A VGA card, please follow

the steps listed below to connect dual monitors if needed:

1. Attach the supplied DVI-I / VGA Adapter to the DVI connector

of the VGA card, and then connect the first monitor to it.

2. Now, connect the second monitor to TV_Out / Video_In Con-

nector or D-Sub Port.
