Gettng Started ▍
MS-7609
Gettng Started ▍
MS-7609
G45TM-E53/G45TM-E51/G45TM-E41/G43TM-E53/G43TM-E51/
G43TM-E41 Seres (MS-7609 v1.X) Manboard

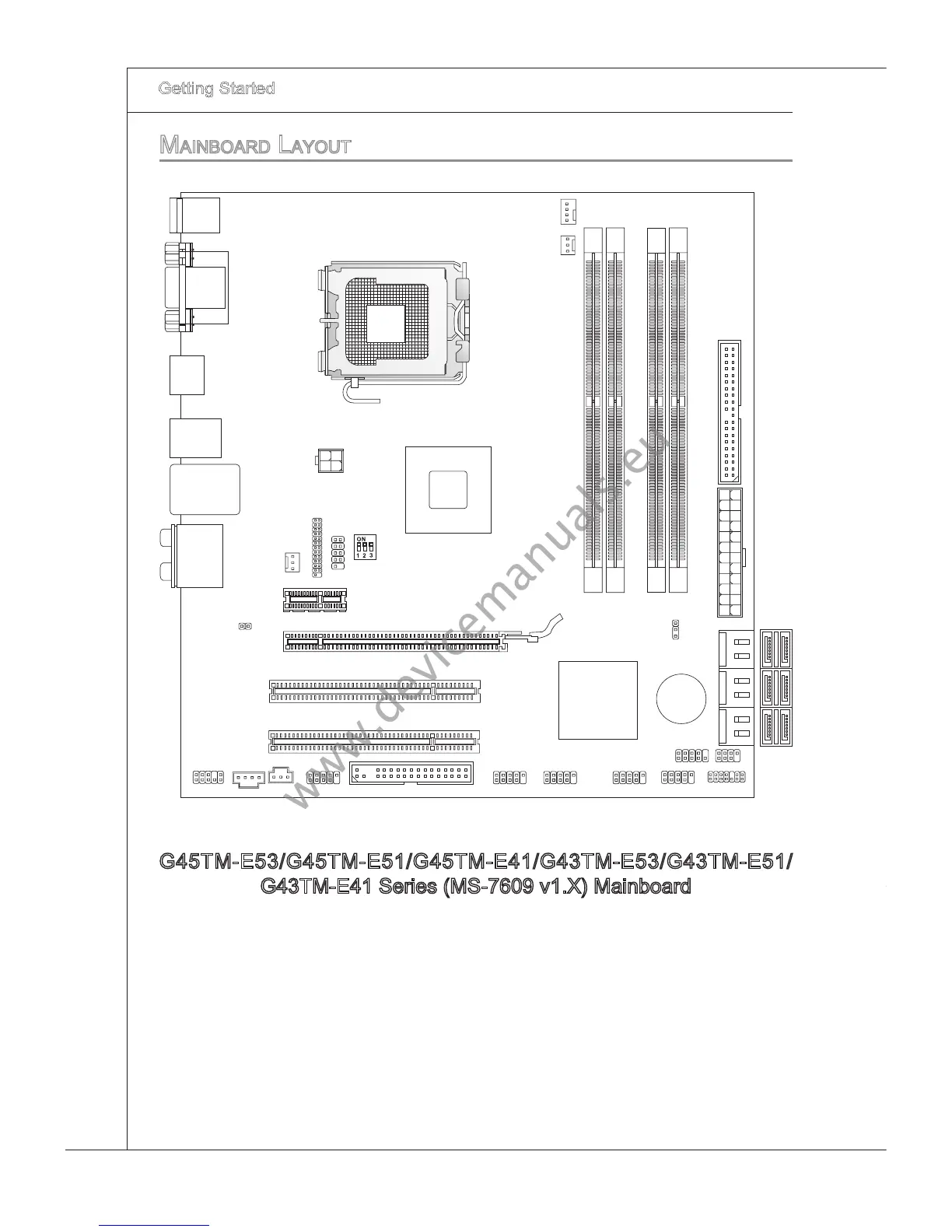

Mainboard Layout
BATT
+
PCI 2
PCI 1
PCI_E2
JTPM1
(optional)
SYSFAN1
SYSFAN2
CPUFAN
JPWR2
JCOM1
Intel
G45/G43
Intel
ICH10R/
ICH10
JBAT1
JUSB3
JUSB4
JCD1
JAUD1
JSP1
FDD 1
JFP2
IDE1
JPWR1
DIMM1
JFP1
Top : mouse
Bottom:
keyboard
Top :
VGA Port
Bottom:
DVI-Dport
Top: LAN Jack
Bottom: USB ports
T:
M:
B:
Line-In
Line-Out
Mic
T:RS-Out
M:CS-Out
B:SS-Out
SATA3-4 SATA1-2
JLPT1
PCI_E1
HDMI port
JCI1
Top: IEEE1394 port(optional)
Bottom: USB ports
DIMM2
DIMM3
DIMM4
SATA5-6
JUSB2JUSB1J1394_1
(optional)
OC_SW1
