MSI GAMING EDGE WIFI MPG Z590 User Manual

27
󱯯󱠁󶱳󸌶
󳲞󹲋
󸸳󱝭󳲞󹲋󵭡󴁘󸹒󳲞󱶝󹬻󴍆󵷜󸹒󳲞󲚻󾖜
1
2 10
9
1  2 
3  4 
5  6 
7 Ground 8 Ground
9 No Pin 10 

󹆢󸋘
 󸕂󴳈󳠵󾖞󹩚󴽦󲅈󳲞󲖶󹆾󷉥󳘗󹱑󴨟󶅛󸹒󳲞󾖞󱟧󱰁󸹈󳨑󶩭󱠁󲀰󳵊󾖜
 󲦚󸋘󱟧󴨡󸹒󳲞󲚻󲽍󾖛󲀟󱯳󹩚󾖞󸕂󲹂󸆈󳋌󱱌󸯣󺄷󾖜
1
2 12
11

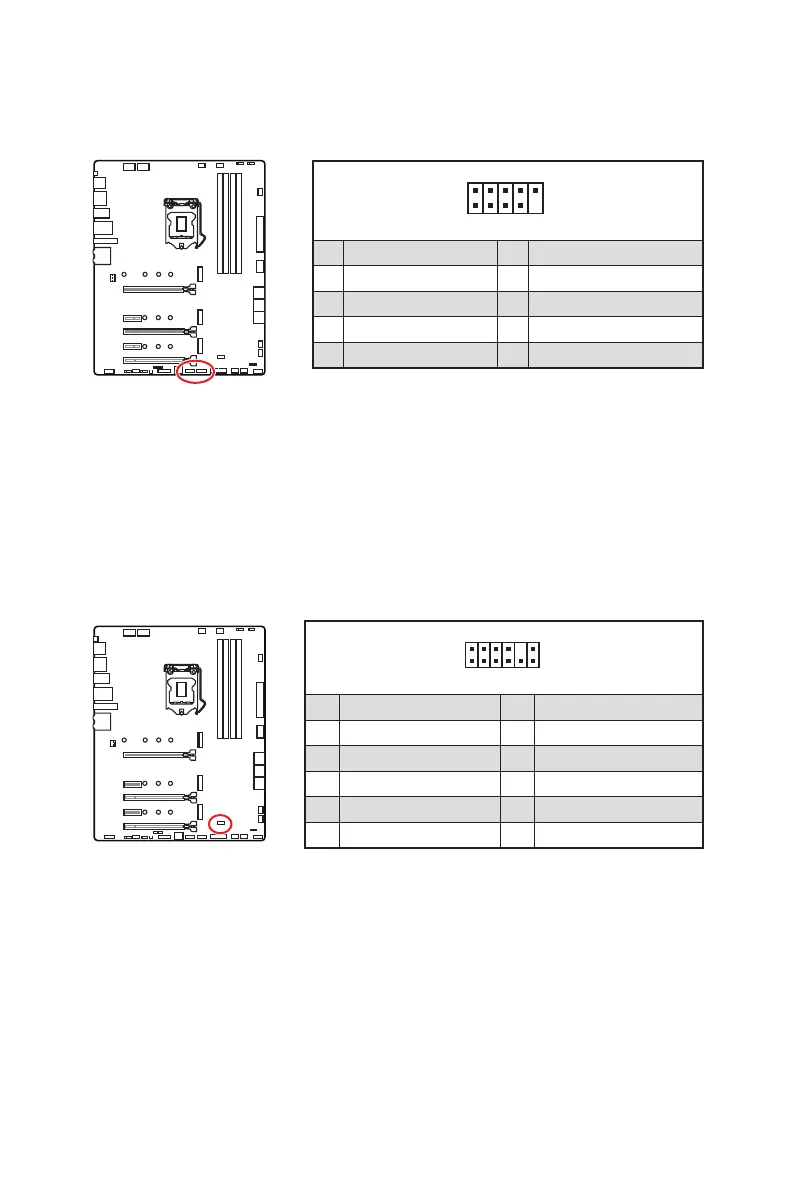

1 SPI Power 2 
3
Master In Slave Out (SPI Data) 4 Master Out Slave In (SPI Data)
5 Reserved 6 
7 Ground 8 SPI Reset
9 Reserved 10 No Pin
11 Reserved 12 Interrupt Request
󴟜󶩭󳲞󹲋
󴨡󳲞󹲋󵭡󴁘󸹒󳲞󲁗󱥰󸣩󳎦󲁙󴟜󶩭󾖜󸕂󲀒󹠻󲹂󾆈󳎦󲁙󳩿󱱥󵾻󸍵󴉣󲣙󸒐󳞹󾖜

MSI GAMING EDGE WIFI MPG Z590 Specifications

General

Chipset	Intel Z590
CPU Socket	LGA 1200
Form Factor	ATX
Memory Support	DDR4
Max Memory	128GB
Storage Interface	6 x SATA 6Gb/s, 3 x M.2
Network	Intel I225-V 2.5Gbps LAN
Bluetooth	Bluetooth 5.2
Audio	Realtek ALC4080 Codec
RGB Headers	2 x RGB LED, 2 x ARGB
PCIe Slots	3 x PCIe 4.0 x16, 2 x PCIe 3.0 x1
