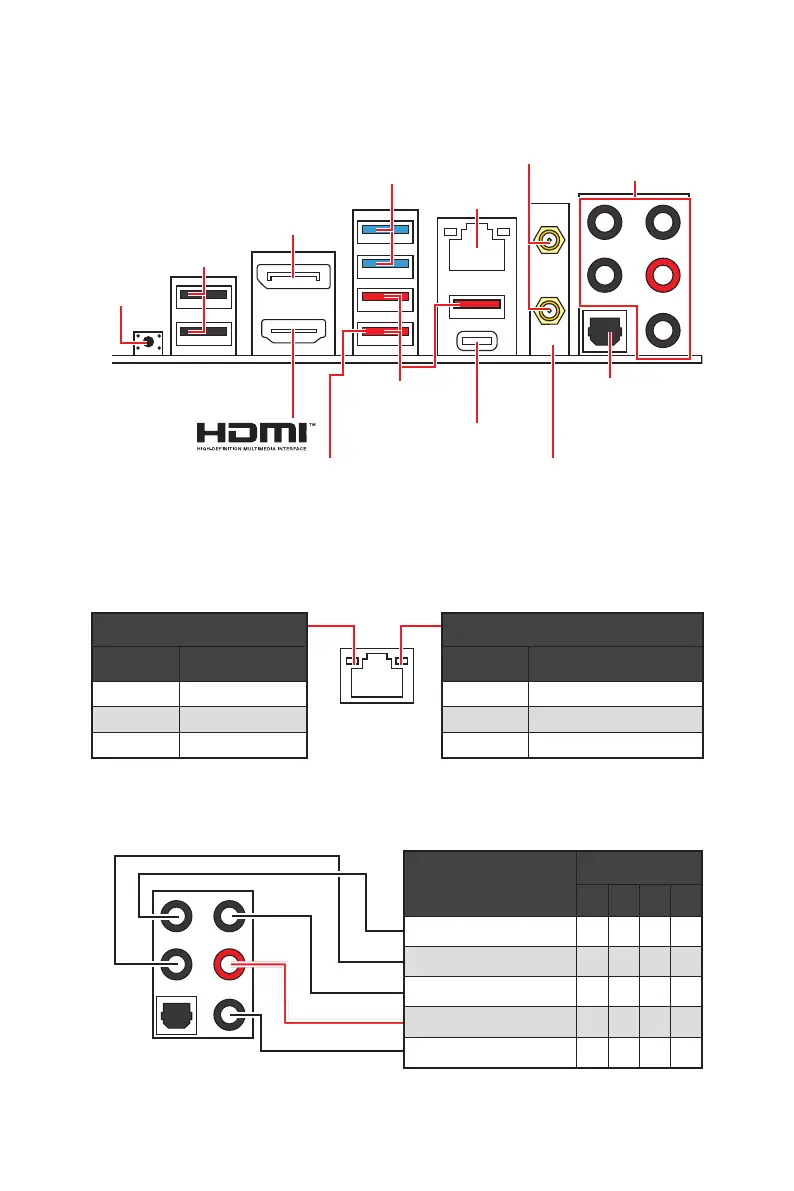

Rear I/O Panel
Rear I/O Panel
Audio Ports Configuration
Audio Ports
Channel
2 4 6 8
  
Rear Speaker Out   
 
    
Mic In
Blank: empty)
LAN Port LED Status Table
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100/1000 Mbps connection
Orange 2.5 Gbps connection
 Flash BIOS Port/ Button
Button.
USB 3.2 Gen 2

2.5 Gbps LAN
Audio Ports
Optical

DisplayPort

connectors
(For MPG Z590 GAMING
EDGE WIFI only)
USB 3.2 Gen 1

Flash BIOS
Button
Flash BIOS Port
USB 2.0
USB 3.2 Gen 2x2


MSI GAMING EDGE WIFI MPG Z590 Specifications

General

Chipset	Intel Z590
CPU Socket	LGA 1200
Form Factor	ATX
Memory Support	DDR4
Max Memory	128GB
Storage Interface	6 x SATA 6Gb/s, 3 x M.2
Network	Intel I225-V 2.5Gbps LAN
Bluetooth	Bluetooth 5.2
Audio	Realtek ALC4080 Codec
RGB Headers	2 x RGB LED, 2 x ARGB
PCIe Slots	3 x PCIe 4.0 x16, 2 x PCIe 3.0 x1
