Overview of Components

Important
 The JRGB connector supports up to 2 meters continuous 5050 RGB LED strips
(12V/G/R/B) with the maximum power rating of 3A (12V).
 Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the RGB LED strip.
 

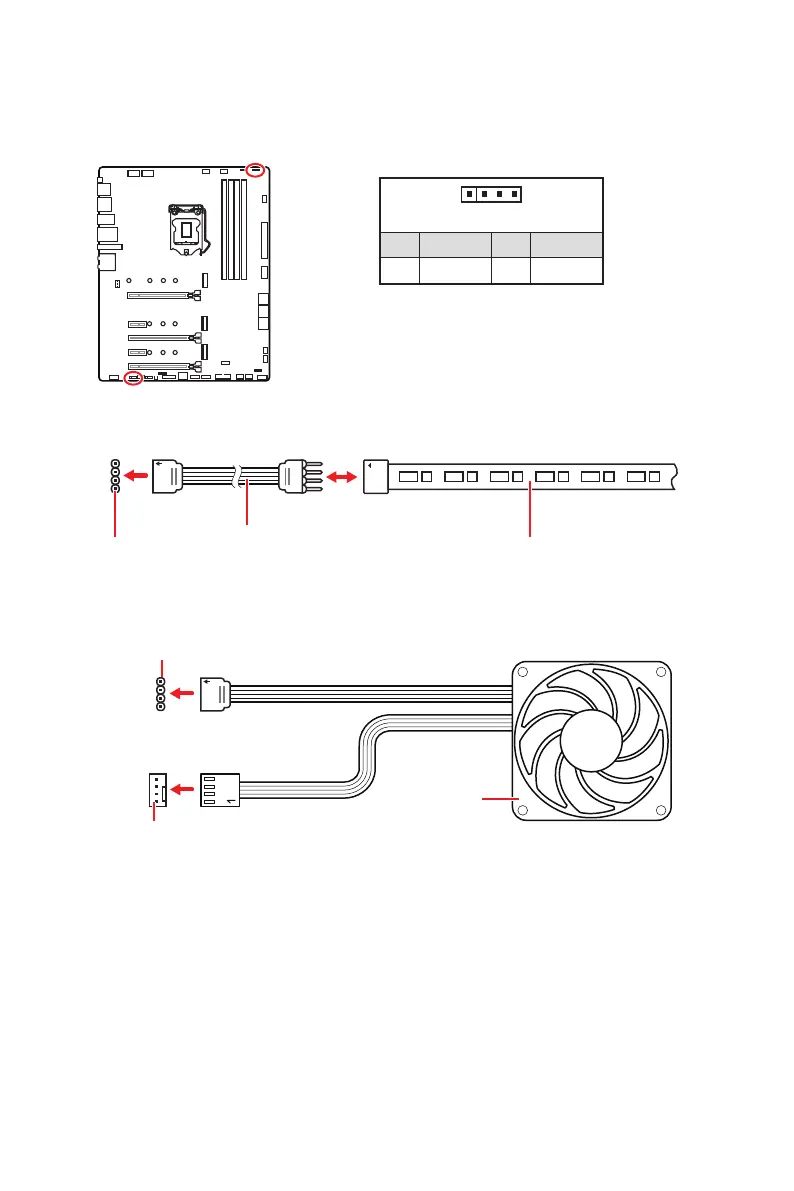

JRGB1~2: RGB LED connector
The JRGB connectors allow you to connect the 5050 RGB LED strips 12V.
1
G
R
B
JRGB
connector
RGB extension
cable
5050 RGB LED strips 12V
1
1  2 G
3 R 4 B
RGB LED Strip Connection
1
1
G
R
B
JRGB connector
System Fan connector
RGB LED Fan Connection
RGB LED Fan

MSI GAMING EDGE WIFI MPG Z590 Specifications

General

Chipset	Intel Z590
CPU Socket	LGA 1200
Form Factor	ATX
Memory Support	DDR4
Max Memory	128GB
Storage Interface	6 x SATA 6Gb/s, 3 x M.2
Network	Intel I225-V 2.5Gbps LAN
Bluetooth	Bluetooth 5.2
Audio	Realtek ALC4080 Codec
RGB Headers	2 x RGB LED, 2 x ARGB
PCIe Slots	3 x PCIe 4.0 x16, 2 x PCIe 3.0 x1
