Overview of Components

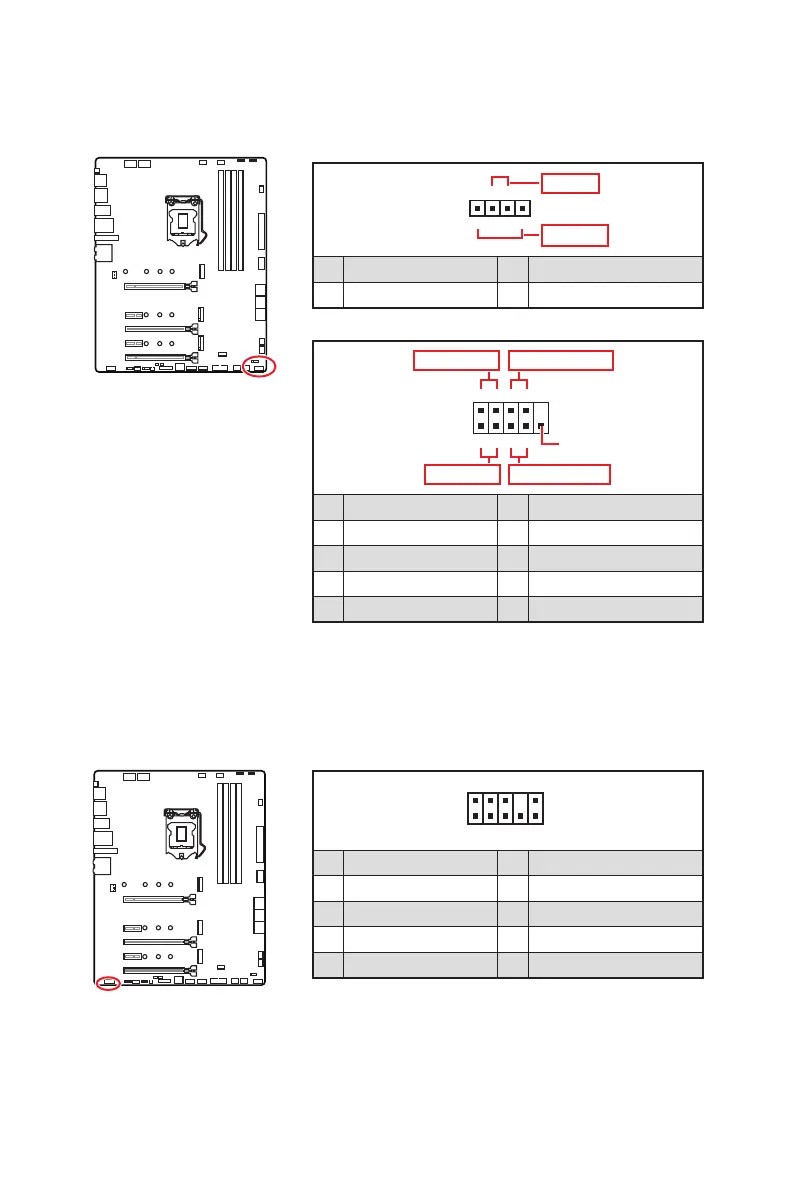

JFP1, JFP2: Front Panel Connectors

These connectors connect to the switches and LEDs on the front panel.

2 10











Power LED

HDD LED Reset Switch

Reserved

Power Switch

JFP1

1  2 

3  4 

5 Reset Switch 6 Power Switch

7 Reset Switch 8 Power Switch

9 Reserved 10 No Pin

JAUD1: Front Audio Connector

This connector allows you to connect audio jacks on the front panel.

2 10

1  2 Ground

3  4 

5 Head Phone R 6 

7 SENSE_SEND 8 No Pin

9 Head Phone L 10 Head Phone Detection

JFP2





Speaker

Buzzer

1  2 

3  4 
