Overview of Components

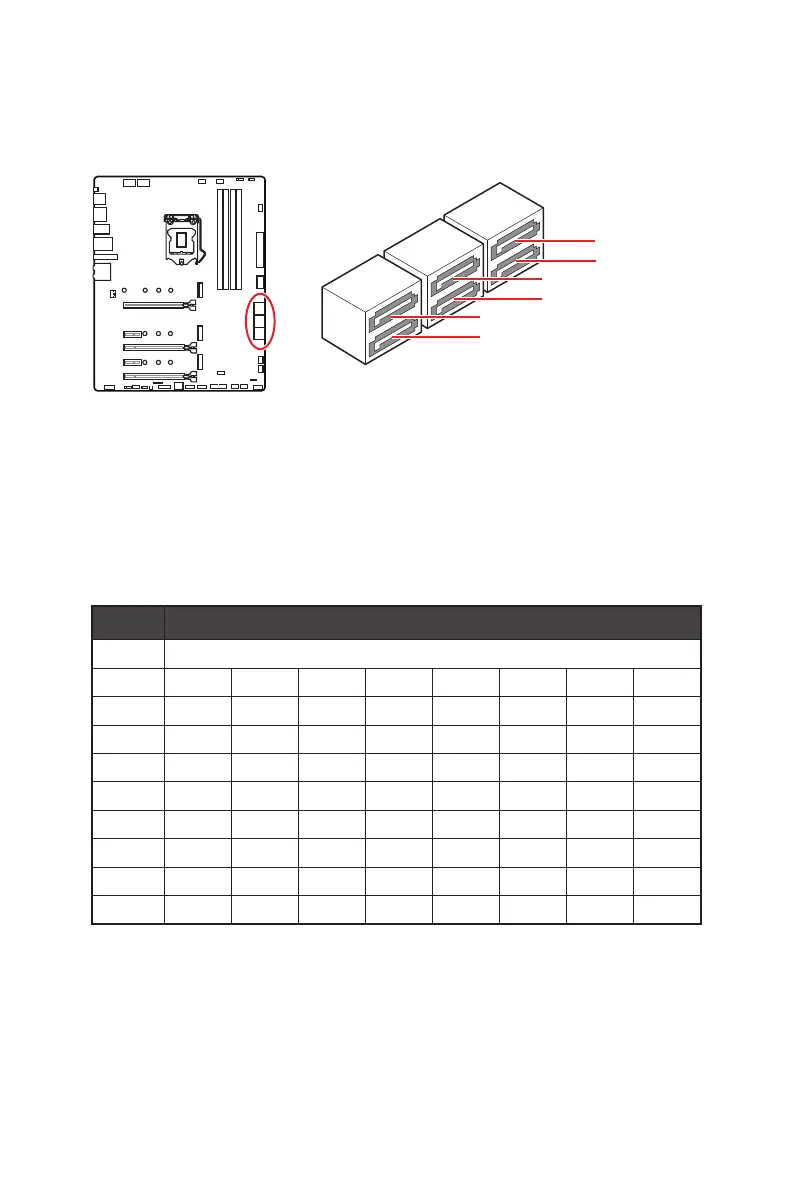

SATA1~6: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
SATA1
SATA3
SATA5
SATA2
SATA4
SATA6

Important
 
transmission otherwise.
 SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
M.2, SATA & PCI_E3 slots combination table
Slot Available connectors
M2_1 
M2_2  SATA  SATA  SATA  
M2_3   SATA SATA    SATA
SATA1        
SATA2        
SATA3        
SATA4        
SATA5        
SATA6        
        
(SATA: M.2 SATA SSD, PCIe

Important
 
unavailable when installing M.2 SATA SSD in the M2_2 slot.
 

MSI GAMING EDGE WIFI MPG Z590 Specifications

General

Chipset	Intel Z590
CPU Socket	LGA 1200
Form Factor	ATX
Memory Support	DDR4
Max Memory	128GB
Storage Interface	6 x SATA 6Gb/s, 3 x M.2
Network	Intel I225-V 2.5Gbps LAN
Bluetooth	Bluetooth 5.2
Audio	Realtek ALC4080 Codec
RGB Headers	2 x RGB LED, 2 x ARGB
PCIe Slots	3 x PCIe 4.0 x16, 2 x PCIe 3.0 x1
