Overview of Components

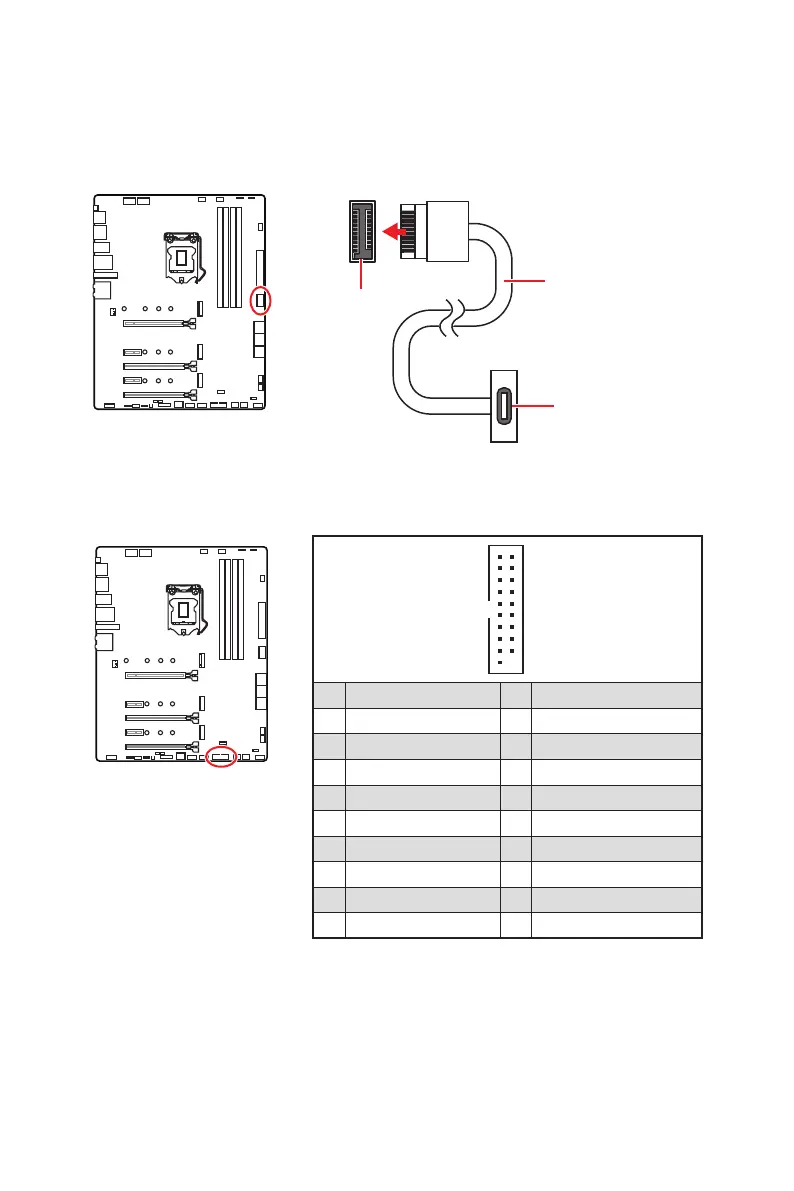

JUSB4: USB 3.2 Gen 2 Type-C Connector



front panel. The connector possesses a foolproof design. When you connect the cable,

be sure to connect it with the corresponding orientation.

JUSB3: USB 3.2 Gen 1 Connector

This connector allows you to connect USB 3.2 Gen 1 5Gbps ports on the front panel.



Important

Note that the Power and Ground pins must be connected correctly to avoid possible

damage.

10 11

1 Power 11 

2 USB3_RX_DN 12 

3 USB3_RX_DP 13 Ground

4 Ground 14 

5  15 

6  16 Ground

7 Ground 17 USB3_RX_DP

8  18 USB3_RX_DN

9  19 Power

10 Ground 20 No Pin

JUSB4





the front panel
