MSI GAMING EDGE WIFI MPG Z590 User Manual

21
Overview of Components
M2_1~3: M.2 Slots (Key M)

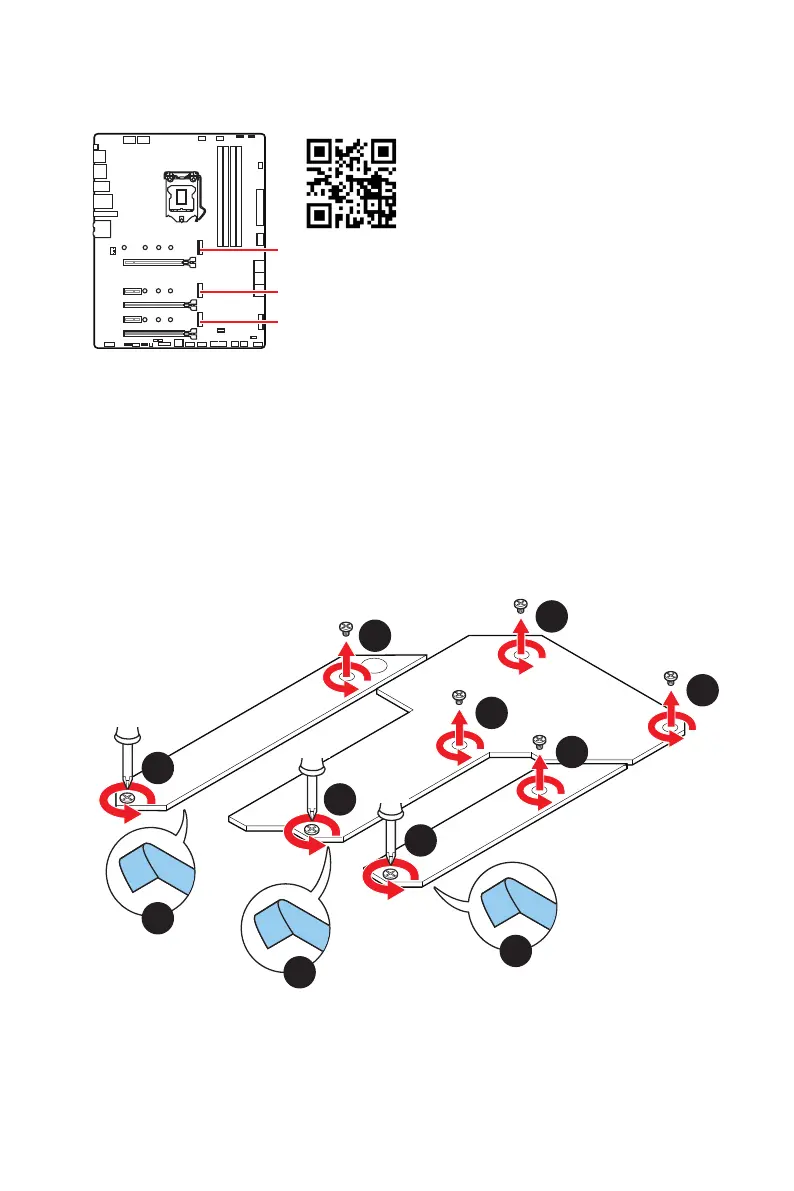

Installing M.2 module
1. Loosen the screws of M.2 SHIELD FROZR heatsink.
2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads of heatsink.
2
2
2
1
1
1
1
1
1
1
1
M2_1
M2_2
M2_3

Important
 
 

Video Demonstration
Watch the video to learn how to Install
M.2 SSD.
https://youtu.be/2UeWMgjwogU
M2_1
M2_3
M2_2

MSI GAMING EDGE WIFI MPG Z590 Specifications

General

Chipset	Intel Z590
CPU Socket	LGA 1200
Form Factor	ATX
Memory Support	DDR4
Max Memory	128GB
Storage Interface	6 x SATA 6Gb/s, 3 x M.2
Network	Intel I225-V 2.5Gbps LAN
Bluetooth	Bluetooth 5.2
Audio	Realtek ALC4080 Codec
RGB Headers	2 x RGB LED, 2 x ARGB
PCIe Slots	3 x PCIe 4.0 x16, 2 x PCIe 3.0 x1
