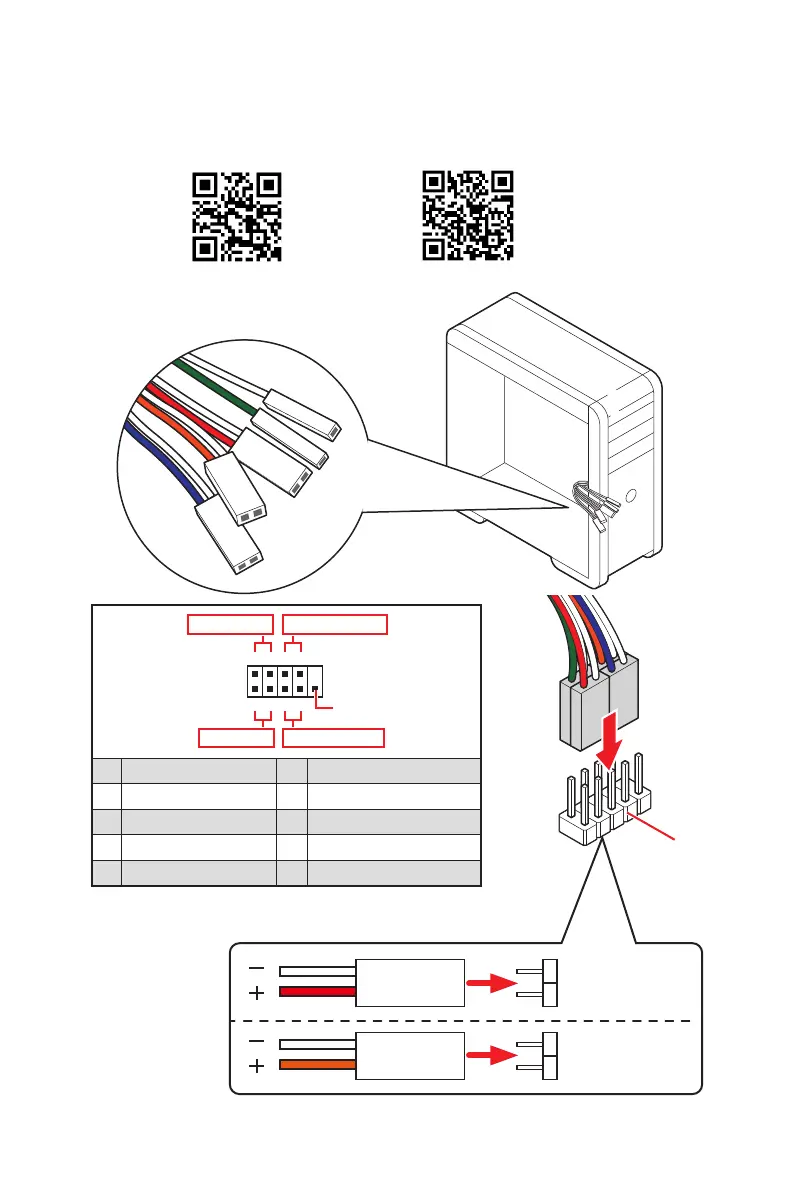

Quick Start

HDD LED

RESET SW

JFP1

HDD LED

HDD LED -

HDD LED +

POWER LED -

POWER LED +

POWER LED

2 10

Power LED

HDD LED Reset Switch

Reserved

Power Switch

JFP1

1 HDD LED + 2 Power LED +

3 HDD LED - 4 Power LED -

5 Reset Switch 6 Power Switch

7 Reset Switch 8 Power Switch

9 Reserved 10 No Pin

RESET SW

POWER SW

POWER LED+

POWER LED-

HDD LED

Connecting the Front Panel Header/

󳲞󶬗󼗶󻡦󽄚󺼂󼳖󺼗󼼢󼏢󺪢󽍊󺰢

󸹒󳲞󱶝󶹌󹬻󴍆󹆾󷉥󸶚󳲞󱶝󶹌󹬻󴍆󳲞󲤆

http://youtu.be/DPELIdVNZUI

Youtube

󱠳󹃳

http://v.youku.com/v_show/id_XNjcyMTczMzM2.html


