13

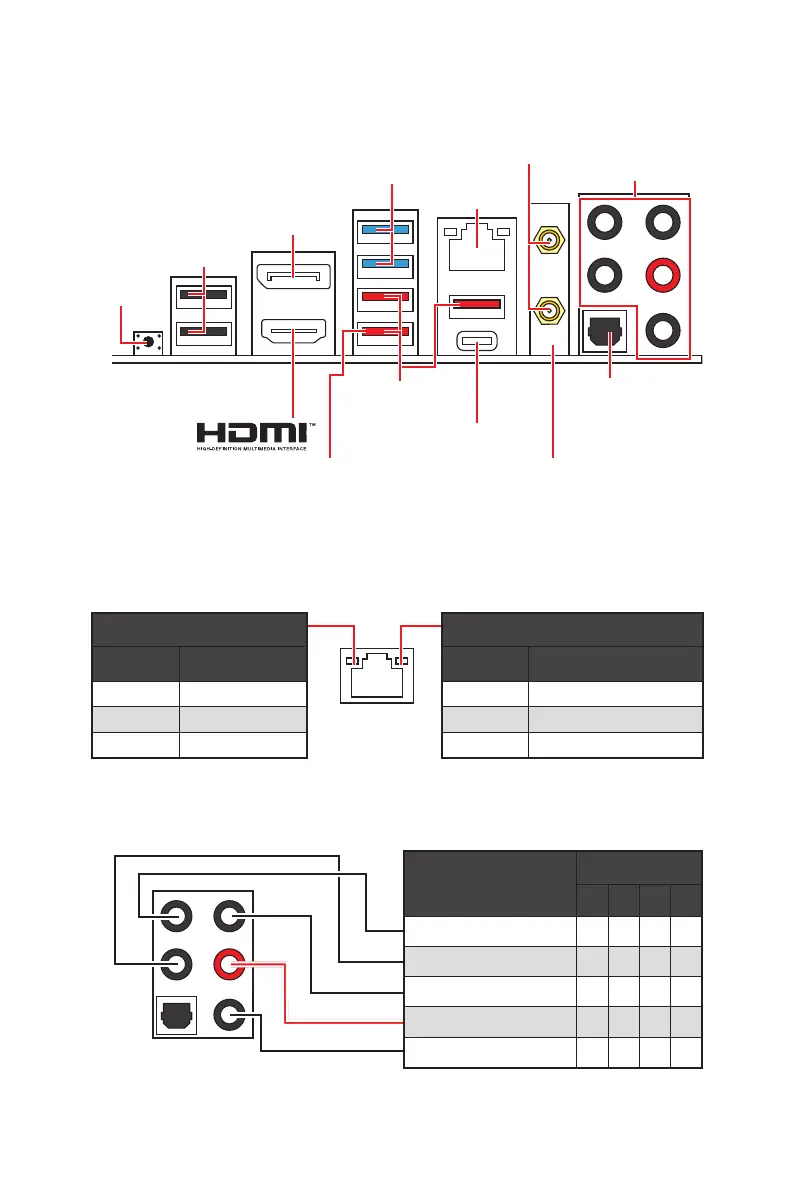

Rear I/O Panel
Rear I/O Panel
Audio Ports Configuration
Audio Ports
Channel
2 4 6 8

Rear Speaker Out


Mic In
Blank: empty)
LAN Port LED Status Table
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100/1000 Mbps connection
Orange 2.5 Gbps connection
Flash BIOS Port/ Button
Button.
USB 3.2 Gen 2

2.5 Gbps LAN
Audio Ports
Optical

DisplayPort

connectors
(For MPG Z590 GAMING
EDGE WIFI only)
USB 3.2 Gen 1

Flash BIOS
Button
Flash BIOS Port
USB 2.0
USB 3.2 Gen 2x2

