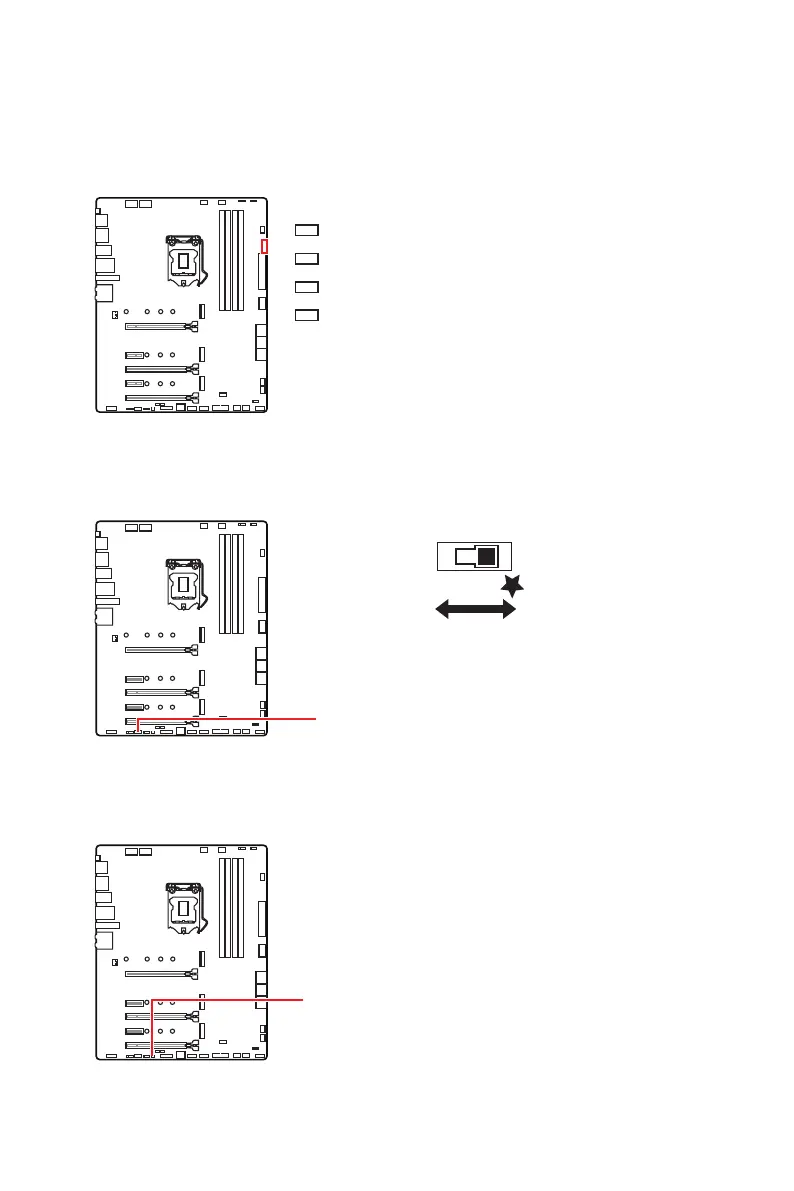

Onboard LEDs
EZ Debug LED
These LEDs indicate the debug status of the motherboard.
CPU
DRAM
VGA
BOOT
or fail.
Onboard LEDs
LED_SW1: EZ LED Control
This switch is used to switch on/ off all the LEDs of motherboard.
LED_SW1
LED_OFF
LED_ON
(Default)
JPWRLED1: LED power input
This connector is used by retailers to demonstrate onboard LED lights.

