Overview of Components

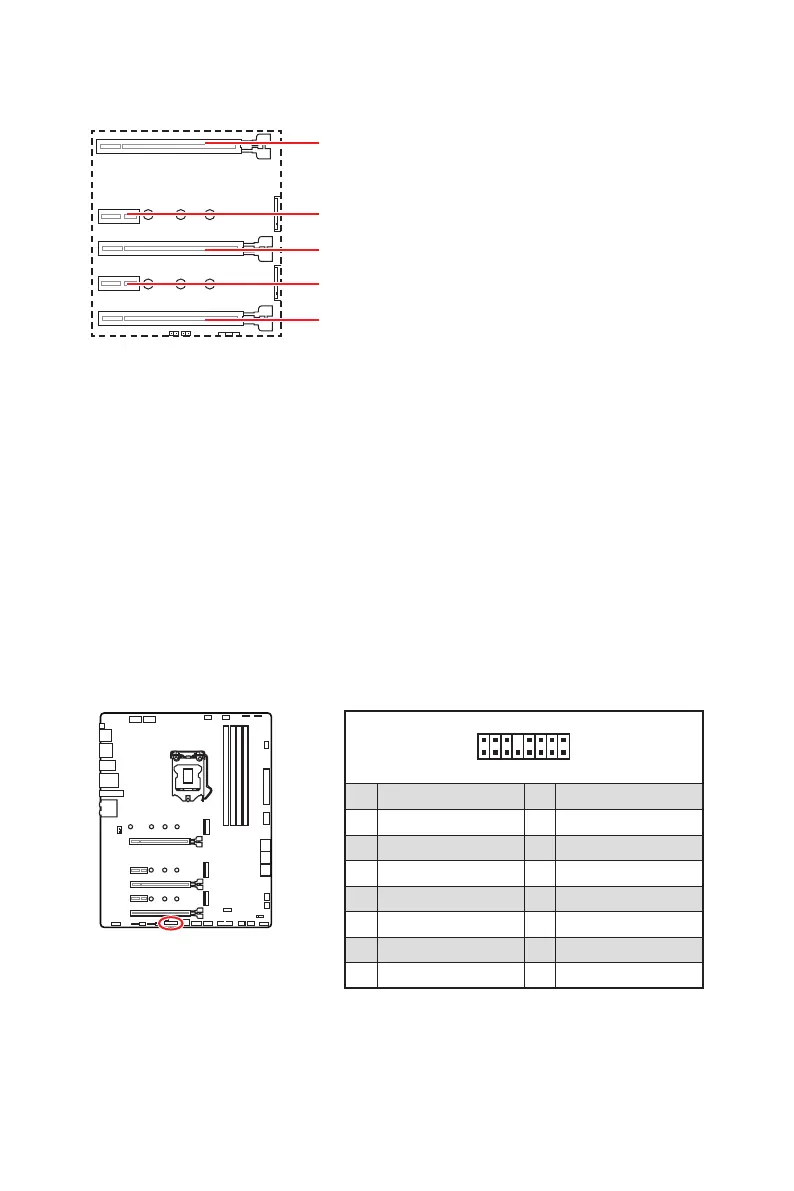

PCI_E1~5: PCIe Expansion Slots

PCI_E1

PCI_E2

PCI_E4

PCI_E3

PCI_E5



Important



If you install a large and heavy graphics card, you need to use a tool such as MSI

Gaming Series Graphics Card Bolster to support its weight to prevent deformation of

the slot.





the PCI_E1 slot is recommended.



When adding or removing expansion cards, always turn off the power supply and

unplug the power supply power cable from the power outlet. Read the expansion



changes.





JTBT1: Thunderbolt Add-on Card Connector



2 16

1 TBT_Force_PWR 2 TBT_S0IX_Entry_REQ

3  4 

5  6 TBT_PSON_Override_N

7  8 No pin

9 Ground 10 

11 DG_PEWake 12 SMBDATA_VSB

13 TBT_RTD3_PWR_EN 14 Ground

15  16 
