MSI GAMING PLUS MPG Z590 User Manual

31
Overview of Components

Important
 The JRGB connector supports up to 2 meters continuous 5050 RGB LED strips
(12V/G/R/B) with the maximum power rating of 3A (12V).
 Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the RGB LED strip.
 

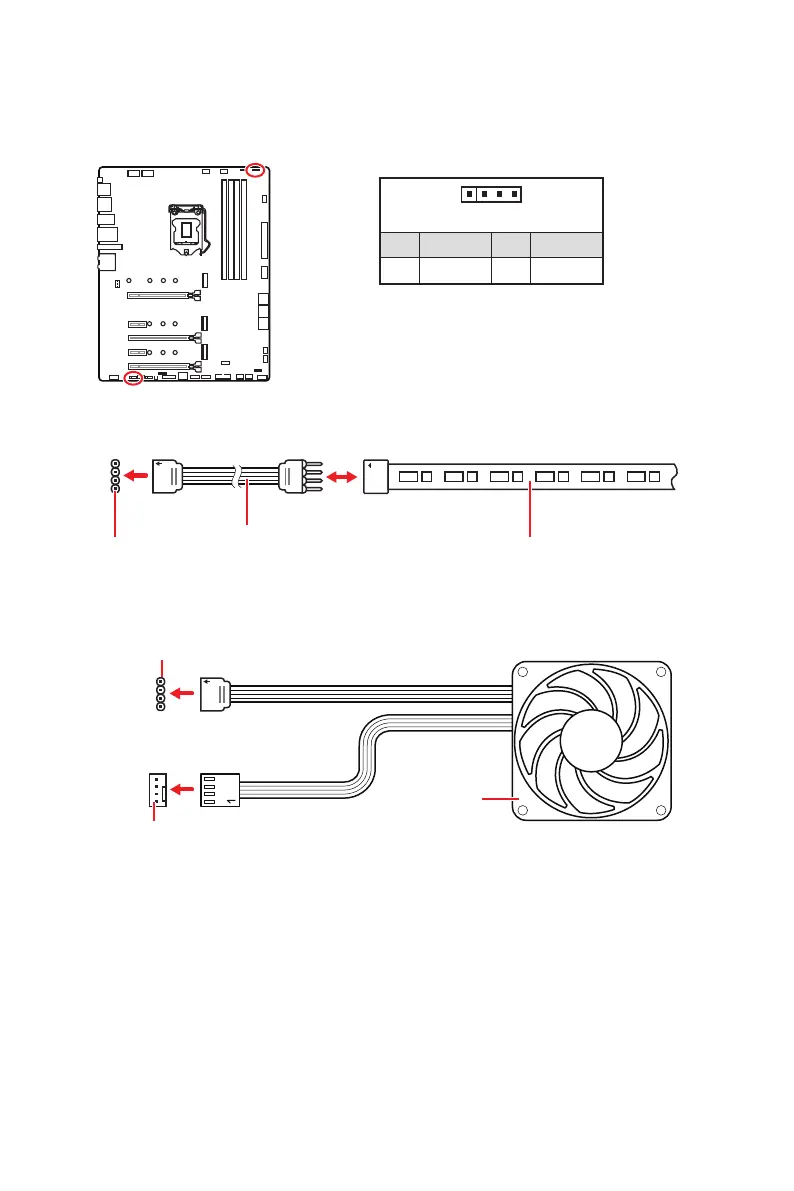

JRGB1~2: RGB LED connector
The JRGB connectors allow you to connect the 5050 RGB LED strips 12V.
1
G
R
B
JRGB
connector
RGB extension
cable
5050 RGB LED strips 12V
1
1  2 G
3 R 4 B
RGB LED Strip Connection
1
1
G
R
B
JRGB connector
System Fan connector
RGB LED Fan Connection
RGB LED Fan

MSI GAMING PLUS MPG Z590 Specifications

General

Chipset	Intel Z590
Form Factor	ATX
Socket	LGA 1200
Memory Slots	4
Max Memory	128GB
PCIe 4.0 x16 Slots	1
PCIe 3.0 x16 Slots	1
PCIe 3.0 x1 Slots	2
M.2 Slots	3
SATA 6Gb/s Ports	6
USB 3.2 Gen 2x2 Ports	1
USB 2.0 Ports	6
LAN	Realtek RTL8125B 2.5Gbps
RAID Support	0, 1, 5, 10
Memory Speed	5333 MHz (OC)
USB 3.2 Gen 2 Ports	2
Audio	Realtek ALC897
