Overview of Components

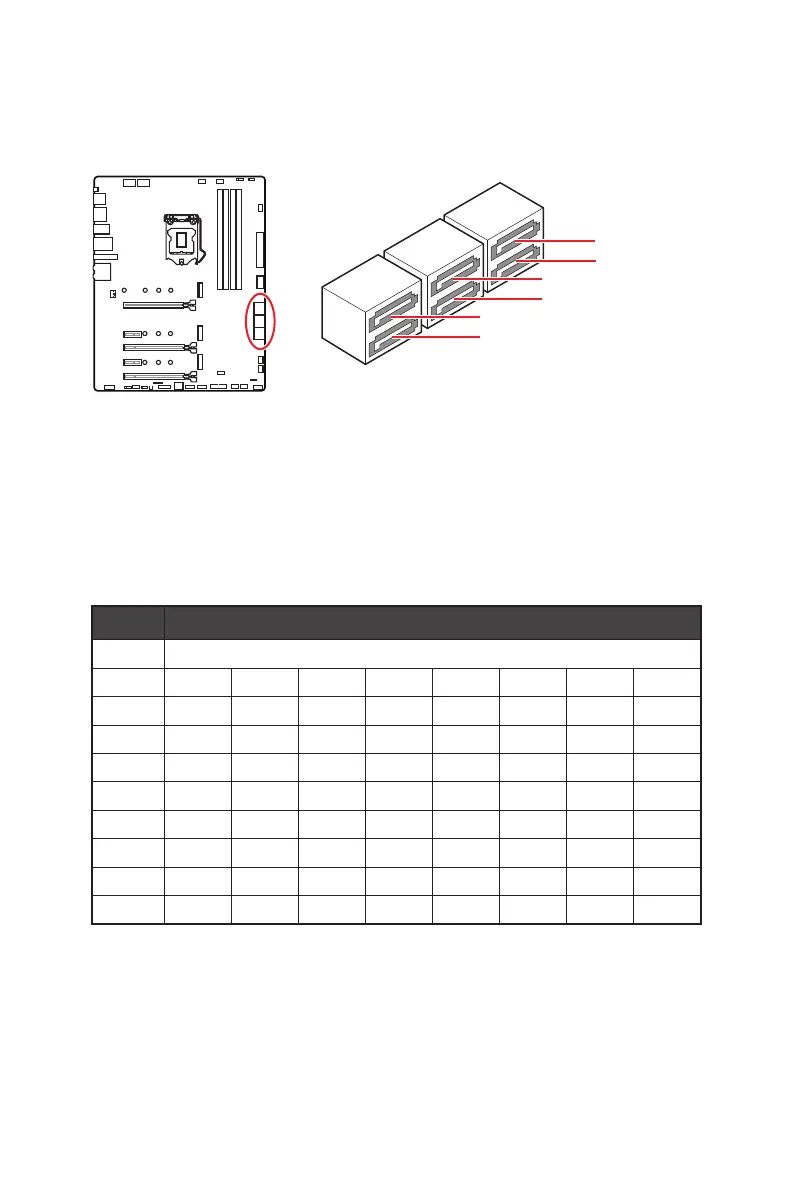

SATA1~6: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
SATA1
SATA3
SATA5
SATA2
SATA4
SATA6

Important
 
transmission otherwise.
 SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
M.2, SATA & PCI_E3 slots combination table
Slot Available connectors
M2_1 
M2_2  SATA  SATA  SATA  
M2_3   SATA SATA    SATA
SATA1        
SATA2        
SATA3        
SATA4        
SATA5        
SATA6        
        
(SATA: M.2 SATA SSD, PCIe

Important
 
unavailable when installing M.2 SATA SSD in the M2_2 slot.
 

MSI GAMING PLUS MPG Z590 Specifications

General

Chipset	Intel Z590
Form Factor	ATX
Socket	LGA 1200
Memory Slots	4
Max Memory	128GB
PCIe 4.0 x16 Slots	1
PCIe 3.0 x16 Slots	1
PCIe 3.0 x1 Slots	2
M.2 Slots	3
SATA 6Gb/s Ports	6
USB 3.2 Gen 2x2 Ports	1
USB 2.0 Ports	6
LAN	Realtek RTL8125B 2.5Gbps
RAID Support	0, 1, 5, 10
Memory Speed	5333 MHz (OC)
USB 3.2 Gen 2 Ports	2
Audio	Realtek ALC897
