MSI GAMING PLUS MPG Z590 User Manual

22
Overview of Components
30º30º
4
3
5
8.5H screw
Standoff

Important
Skip step 3 and step 5, if you install 22110 M.2 into M2_1 slot or 2280 M.2 into M2_2
and M2_3 slots.
6
6
6
6
6
6
6
6

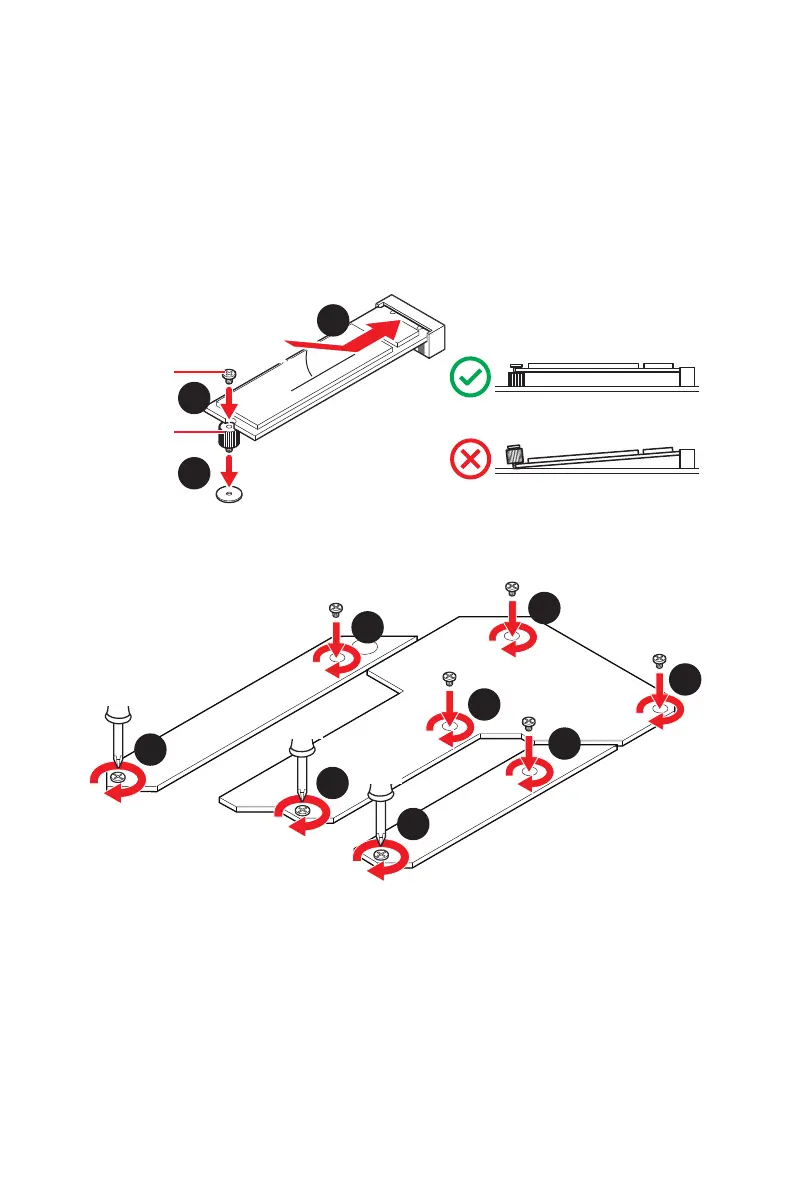

3. Secure the supplied M.2 standoff according to your M.2 SSD length if need.
4. 
5. Secure the M.2 SSD in place with the supplied M.2 8.5H screw.
6. Put the M.2 SHIELD FROZR heatsink back in place and secure it.

MSI GAMING PLUS MPG Z590 Specifications

General

Chipset	Intel Z590
Form Factor	ATX
Socket	LGA 1200
Memory Slots	4
Max Memory	128GB
PCIe 4.0 x16 Slots	1
PCIe 3.0 x16 Slots	1
PCIe 3.0 x1 Slots	2
M.2 Slots	3
SATA 6Gb/s Ports	6
USB 3.2 Gen 2x2 Ports	1
USB 2.0 Ports	6
LAN	Realtek RTL8125B 2.5Gbps
RAID Support	0, 1, 5, 10
Memory Speed	5333 MHz (OC)
USB 3.2 Gen 2 Ports	2
Audio	Realtek ALC897
