MSI H67MA-E45 series User Manual

Hardware Setup
MS-7678
Chapter 2
2-11
Hardware Setup
MS-7678
Chapter 2

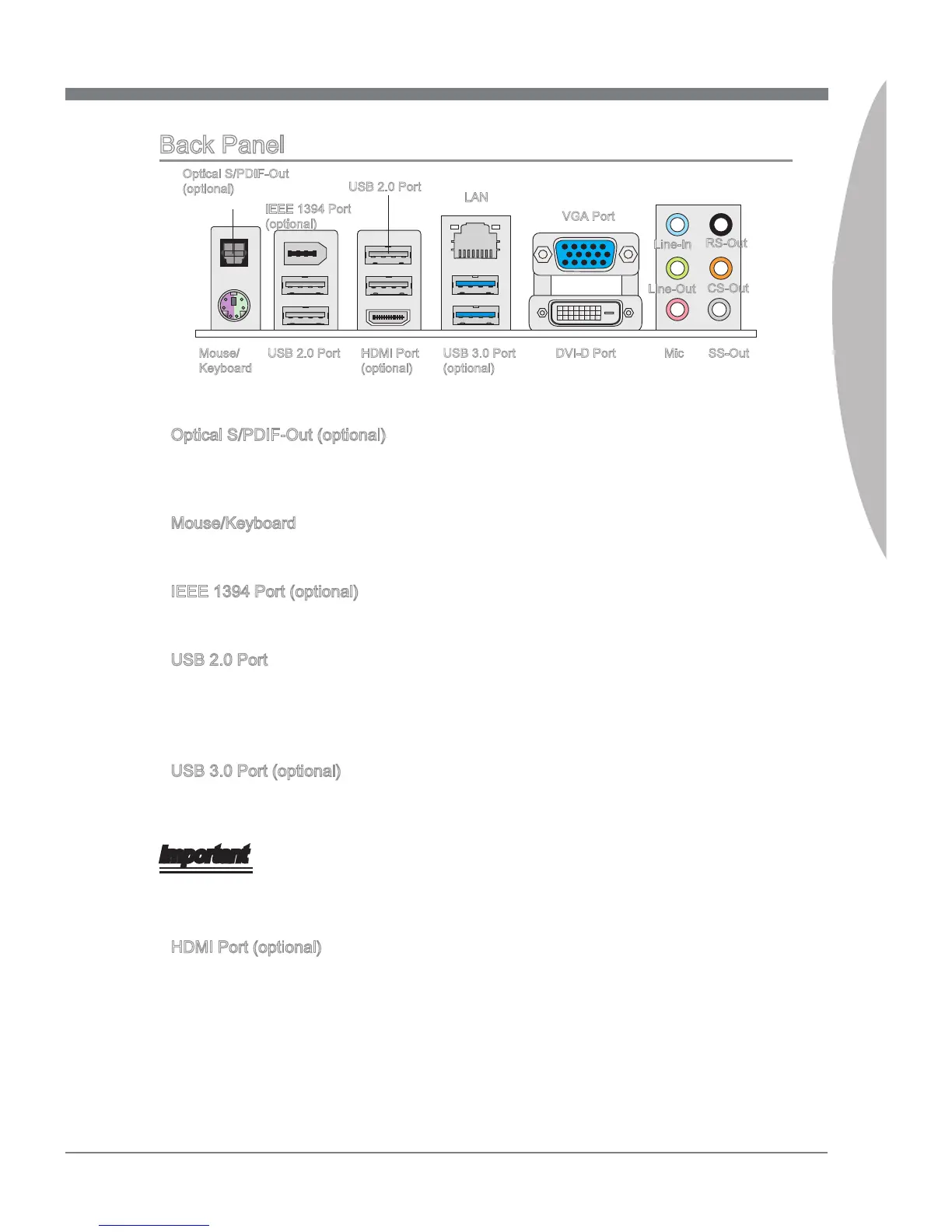

Back Panel
Optcal S/PDIF-Out (optonal)
Ths SPDIF (Sony & Phlps Dgtal Interconnect Format) connector s provded for dgtal
audo transmsson to external speakers through an optcal 󰘰ber cable.
Mouse/Keyboard
The standard PS/2
®
mouse/keyboard DIN connector s for a PS/2
®
mouse/keyboard.
IEEE 1394 Port (optonal)
The IEEE 1394 port on the back panel provdes connecton to IEEE 1394 devces.
USB 2.0 Port
The USB (Unversal Seral Bus) port s for attachng USB devces such as keyboard,
mouse, or other USB-compatble devces. Supports data transfer rate up to 480Mbt/s
(H-Speed).
USB 3.0 Port (optonal)
USB 3.0 port s backward-compatble wth USB 2.0 devces. It supports data transfer
rate up to 5 Gbt/s (SuperSpeed).
Important
If you want to use a USB 3.0 devce, you must use the USB 3.0 cable to connect to the
USB 3.0 port.
HDMI Port (optonal)
The Hgh-De󰘰nton Multmeda Interface (HDMI) s an all-dgtal audo/vdeo nterface
capable of transmttng uncompressed streams. HDMI supports all TV format, nclud
-
ng standard, enhanced, or hgh-de󰘰nton vdeo, plus mult-channel dgtal audo on a
sngle cable.
▶
▶
▶
▶
▶
▶
Mouse/
Keyboard
HDMI Port
(optonal)
LAN
Lne-In
Lne-Out
Mc
IEEE 1394 Port
(optonal)
USB 3.0 Port
(optonal)
VGA Port
USB 2.0 Port DVI-D Port
RS-Out
CS-Out
SS-Out
Optcal S/PDIF-Out
(optonal)
USB 2.0 Port
