MSI K8NGM-V

2-17
Hardware Setup
PIN SIGNAL PIN SIGNAL
1 GND 2 TXP
3 TXN 4 GND
5 RXN 6 RXP
7 GND
Pin Definition
Connect to SATA1/2/3/4
Take out the dust cover and
connect to the hard disk
devices
Serial ATA cable

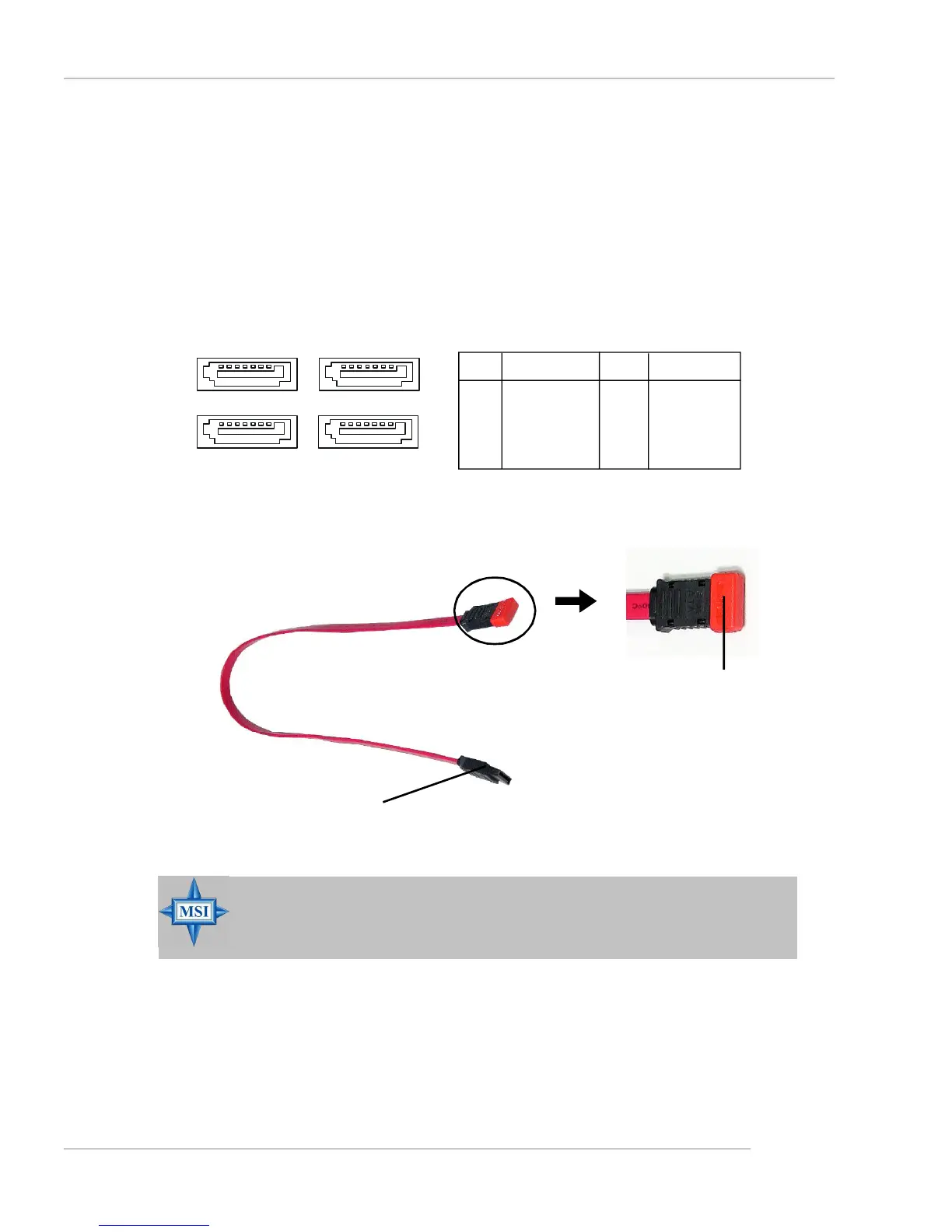

Serial ATAII Connectors: SATA1~SATA4 (nForce 410 supports 2
SATA only)
The Mainboard supports four serial ATAII connectors SATA1~SATA4.
SATA1~SATA4 are high-speed Serial ATAII interface ports. Each supports 2
st
genera-
tion serial ATA data rates of 300MB/s and is fully compliant with Serial ATA 1.0
specifications. Each Serial ATAII connector can connect to 1 hard disk device.
7
1
SATA4
SATA3
SATA2
SATA1
MSI Reminds You...
Please do not fold the Serial ATA cable into 90-degree angle. Otherwise,
data loss may occur during transmission.
7
1
7
1
7
1
