Hardware Setup

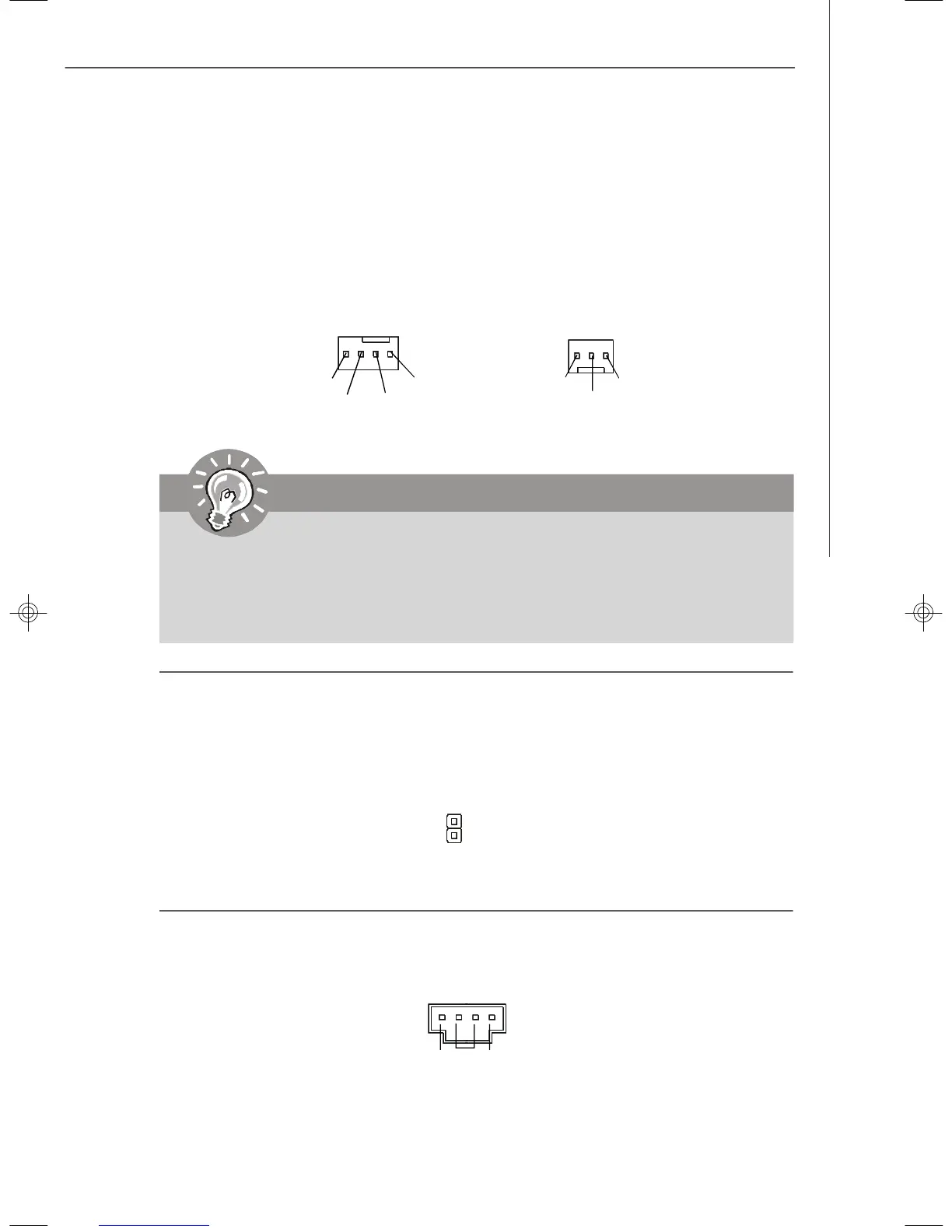

Fan Power Connectors: CPUFAN1, SYSFAN1
The fan power connectors support system cooling fan with +12V. When connecting
the wire to the connectors, always take note that the red wire is the positive and
should be connected to the +12V, the black wire is Ground and should be connected
to GND. If the mainboard has a System Hardware Monitor chipset on-board, you must
use a specially designed fan with speed sensor to take advantage of the CPU fan
control.
Chassis Intrusion Switch Connector: JCI1
This connector connects to a 2-pin chassis switch. If the chassis is opened, the
switch will be short. The system will record this status and show a warning mes-
sage on the screen. To clear the warning, you must enter the BIOS utility and clear the
record.
CD-In Connector: JCD1
This connector is provided for CD-ROM audio.
JCD1
CPUFAN1
SYSFAN1
Important
1.Please refer to the recommended CPU fans at AMD
®
official website or
consult the vendors for proper CPU cooling fan.
2.Always consult the vendors for proper CPU cooling fan.
3. Fan/heatsink with 3 or 4 pins are both available for CPUFAN1.
+12V
GND
Control
SENSOR +12V
GND
SENSOR
JCI1
2
CINTRU
GND
1
GND
R
L
