2-16
MS-7327 Mainboard
Pin Description Pin Description
1 GND 4 COMP
2 Y OUT 5 GND
3 C OUT
JTV1 Pin Definition

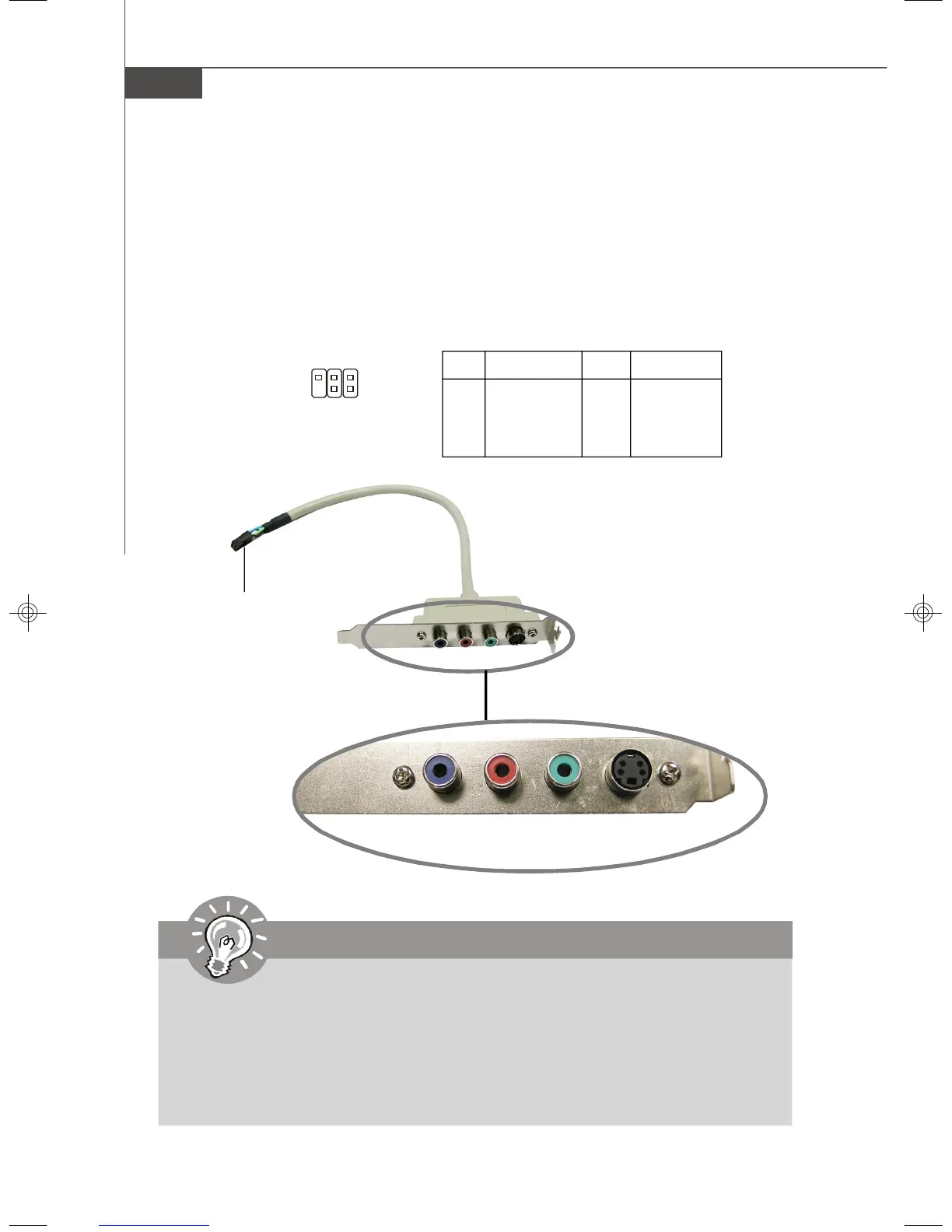

TV-Out Connector: JTV1 (Optional)
The mainboard optionally provides a TV-Out connector for you to attach a TV-Out
bracket that integrates HDTV-out. The TV-Out bracket offers two types of TV-Out
connectors: S-Video and RCA Composite connectors. Select the appropriate one to
connect to the standard television or the HDTV (High-Definition TeleVision) and it will
be able to display PC’s information.
Important
1.Please note that the TV-Out bracket can connect to one TV only. Users
have to choose either the RCA Composite or the S-Video to connect. Si-
multaneous connection (of this bracket) to two TVs is prohibited and may
lead to the malfunction of the TVs.
TV-Out Bracket (Optional)
Connected to JTV1
TV-Out Connector
(S-Video)
TV-Out Connector
(RCA Composite)
3
JTV1
1
5
4
2
7327v1.0-2.p65 2007/4/13, 上午 10:4016
