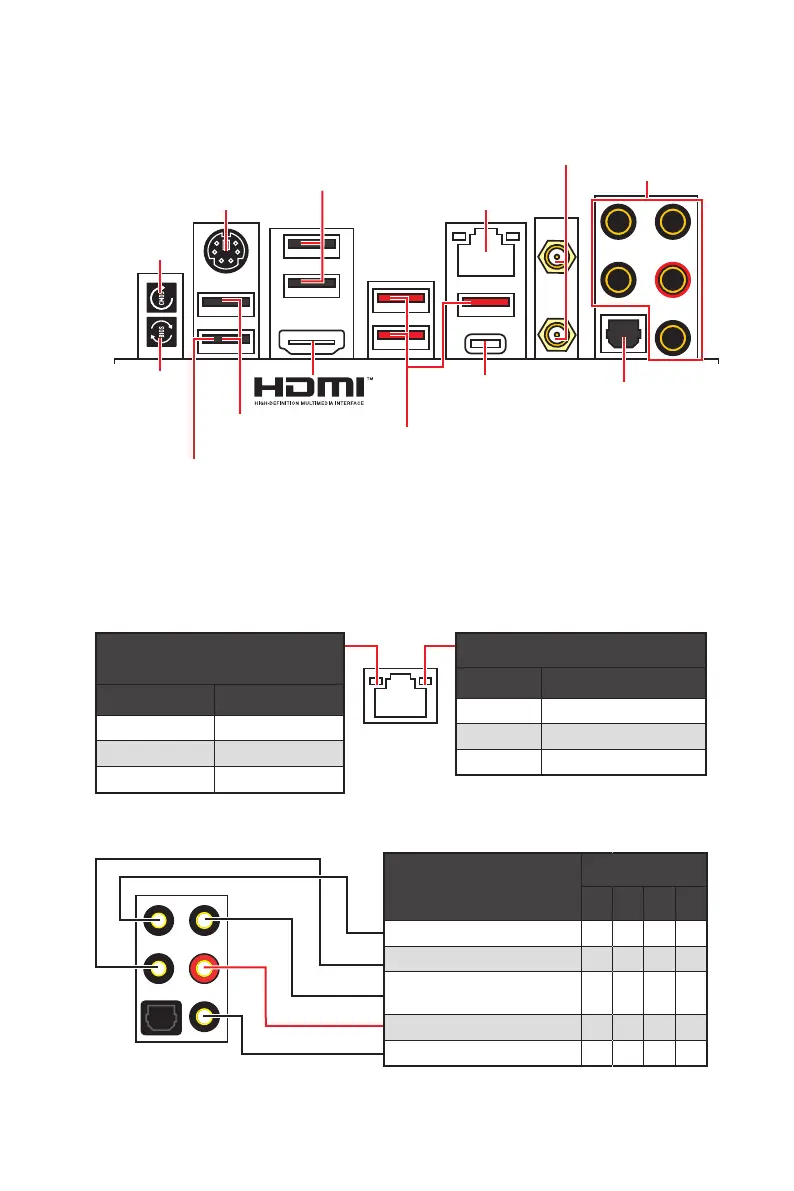

Panneau arrière Entrée / Sortie

Panneau arrière Entrée / Sortie


Etat Description
Eteint Pas de connexion
Jaune Connexion correcte
Clignote
Activité en cours

Etat 
Eteint 10 Mb/s
Vert 100/1000 Mb/s
Orange 2,5 Gb/s

Veuillez vous référer à la page 46 pour en savoir plus sur
la mise à jour du BIOS avec Bouton Flash BIOS.


USB 3.2 Gen 2

(depuis CPU)
USB 3.2 Gen 2

(depuis CPU)
Port Flash BIOS
Combo PS/2 2,5 Gb/s LAN

(depuis Chipset)

(depuis Chipset)
Bouton Flash
BIOS
Bouton Clear
CMOS
Connecteurs

Ports audio
Sortie S/PDIF
optique
Ports audio

2 4 6 8
Sortie centre / Caisson de basse


parleur côté
Sortie Ligne / Sortie casque avant
Entrée Microphone
(: connecté, Espace : vide)
