MSI MEG B550 UNIFY - M2_1~4: M.2 Slots (Key M)

MSI MEG B550 UNIFY
445 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
23



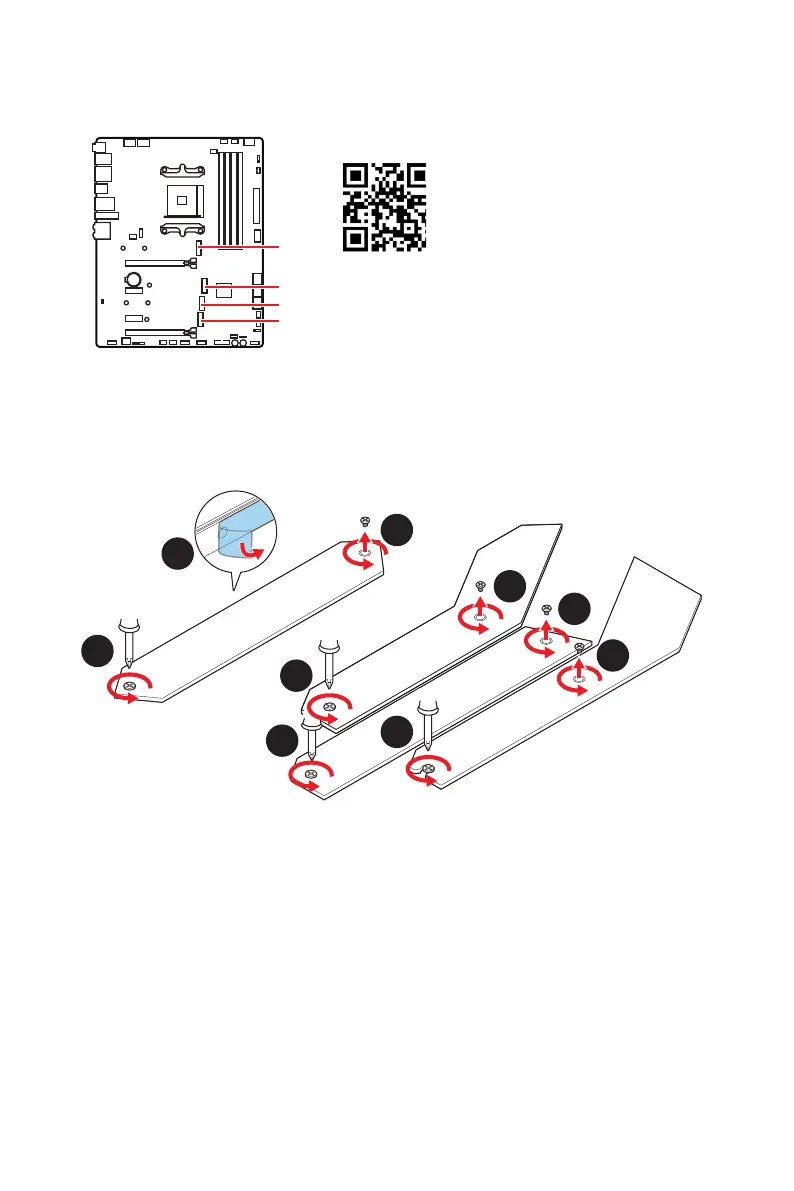

M2_1
M2_2
M2_3
M2_4
Video Demonstration
Watch the video to learn how to
Install M.2 module.
http://youtu.be/JCTFABytrYA
Installing M.2 module
1. Loosen the screws of M.2 SHIELD FROZR heatsink.
2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads.
2
1
1
1
1
1
1
1
3. M2_1 and M2_3 slots are equipped with one standoff. To avoid damage to the M.2
SSD. If you want to install 22110 M.2 SSD, please remove the standoff.
4. 
fixed on the M.2 Plate and should not be removed.

film.

1
Important
Pictures shown in this section are for illustration purpose only and may differ from
the actual plates and thermal pads.


