MSI MEG B550 UNIFY - USB 3.2 Gen 1 5 Gbps Connector (JUSB2)

28



front panel. The connector possesses a foolproof design. When you connect the cable,
be sure to connect it with the corresponding orientation.
JUSB1


the front panel


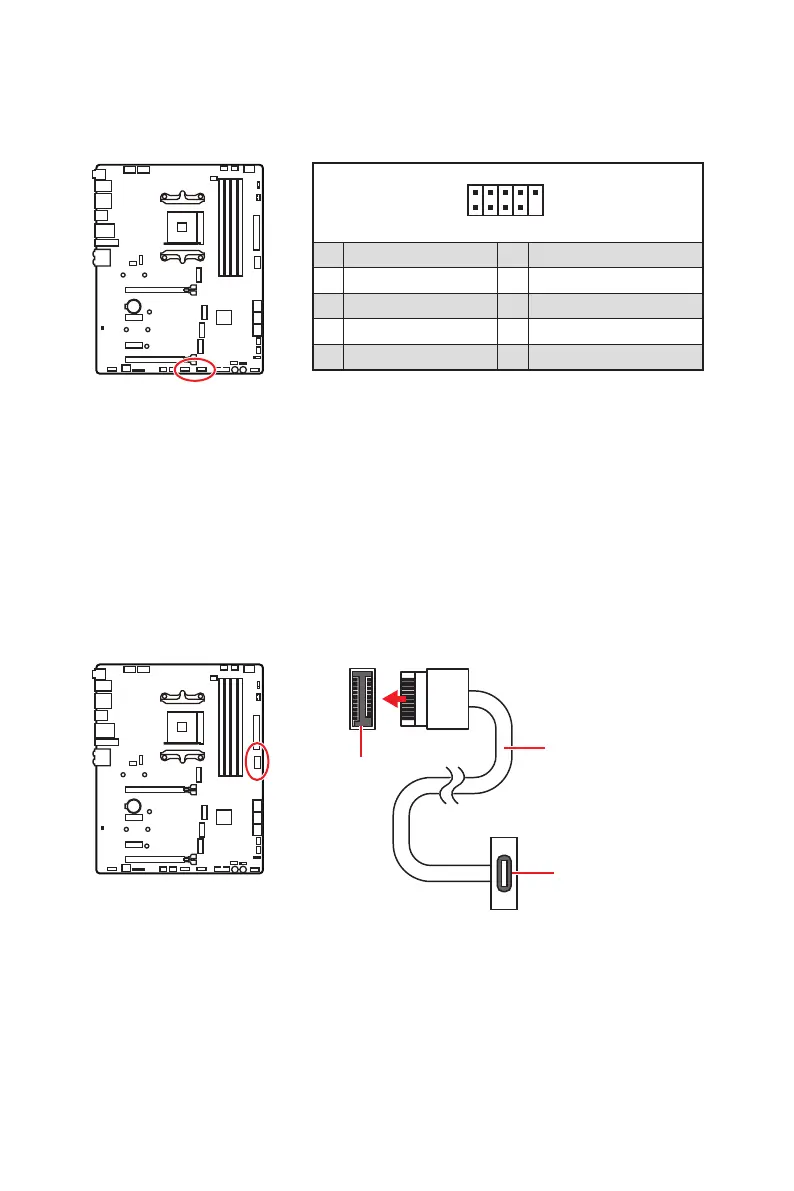

These connectors allow you to connect USB 2.0 ports on the front panel.
1
2 10
9
1 VCC 2 VCC
3  4 
5 USB0+ 6 USB1+
7 Ground 8 Ground
9 No Pin 10 NC

Important
 Note that the VCC and Ground pins must be connected correctly to avoid possible
damage.
 In order to recharge your iPad,iPhone and iPod through USB ports, please install
MSI® DRAGON CENTER utility.
