MSI MPG X570S CARBON MAX WIFI Quick Start

14

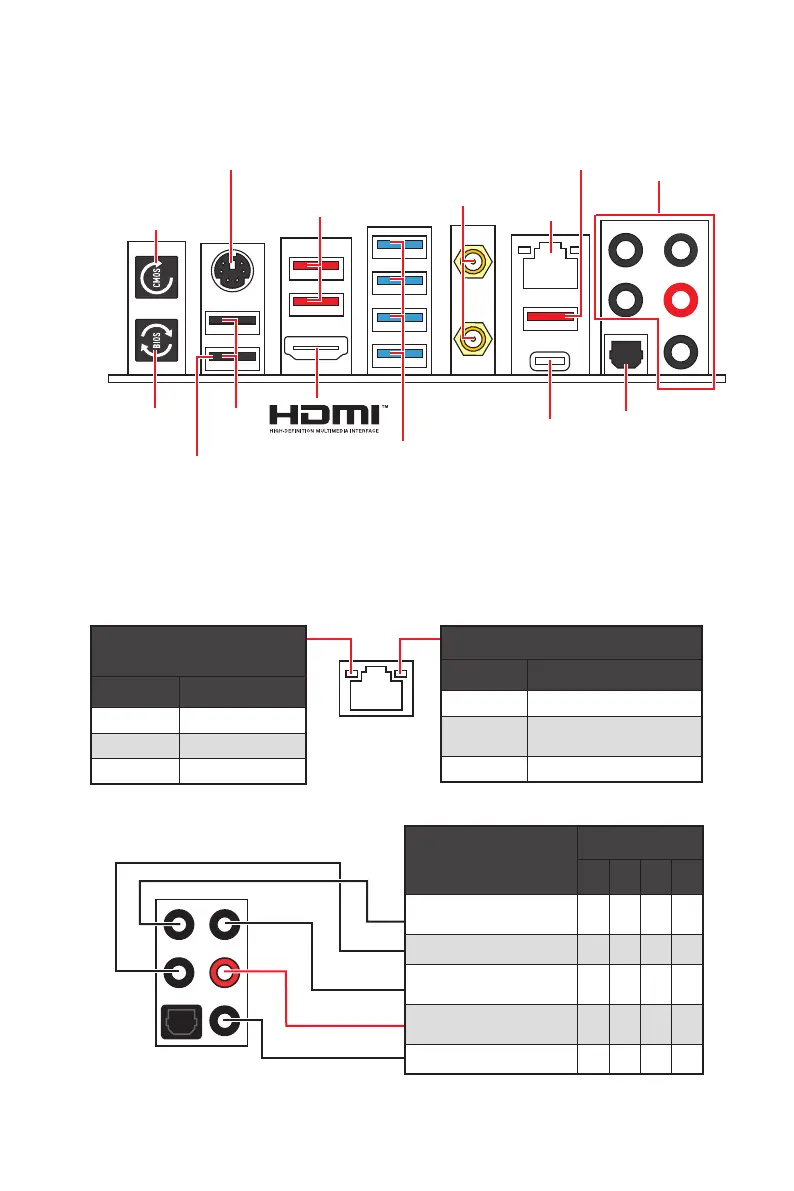

Задняя панель портов ввода/ вывода
Подключение/ Работа
индикатора
Состояние Описание
 
 
 
Скорость передачи данных
Состояние Описание
 



 
Таблица состояний индикатора порта LAN
Конфигурация портов Аудио
Порты Аудио
Канал
2 4 6 8


 
   





   

(Пусто
Задняя панель портов ввода/ вывода
∙ Порт/Кнопка Flash BIOS

USB 3.2 Gen 2

USB 3.2 Gen 2

USB 3.2 Gen 2

LAN



S/PDIF-Out
USB 2.0
Type-A
USB 3.2 Gen 1

 




BIOS

BIOS



MSI MPG X570S CARBON MAX WIFI Specifications

General

Ethernet LAN	Yes
LAN controller	Realtek RTL8125B
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX210
Ethernet interface type	2.5 Gigabit Ethernet
DVI-D ports quantity	0
USB 2.0 ports quantity	2
Digital audio optical out	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Cables included	SATA
Number of SATA III connectors	8
BIOS type	UEFI AMI
Parallel processing technology support	Crossfire
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Memory channels	Dual-channel
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3600, 4000, 4266, 4400, 5100, 5300 MHz
Audio chip	Realtek ALC4080
Component for	PC
Motherboard chipset	AMD X570
Audio output channels	7.1 channels
Motherboard form factor	ATX
Number of mounting holes	9
Motherboard chipset family	AMD
Windows operating systems supported	Windows 10 x64
Processor socket	Socket AM4
Compatible processor series	AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7, AMD Ryzen 9 3rd Gen, AMD Ryzen 9 5th Gen
Harmonized System (HS) code	84733020
Weight	1000 g

Weight and Dimensions

Depth	244 mm
Width	305 mm
Height	268 mm
