MSI MPG X570S CARBON MAX WIFI

22
Overview of Components

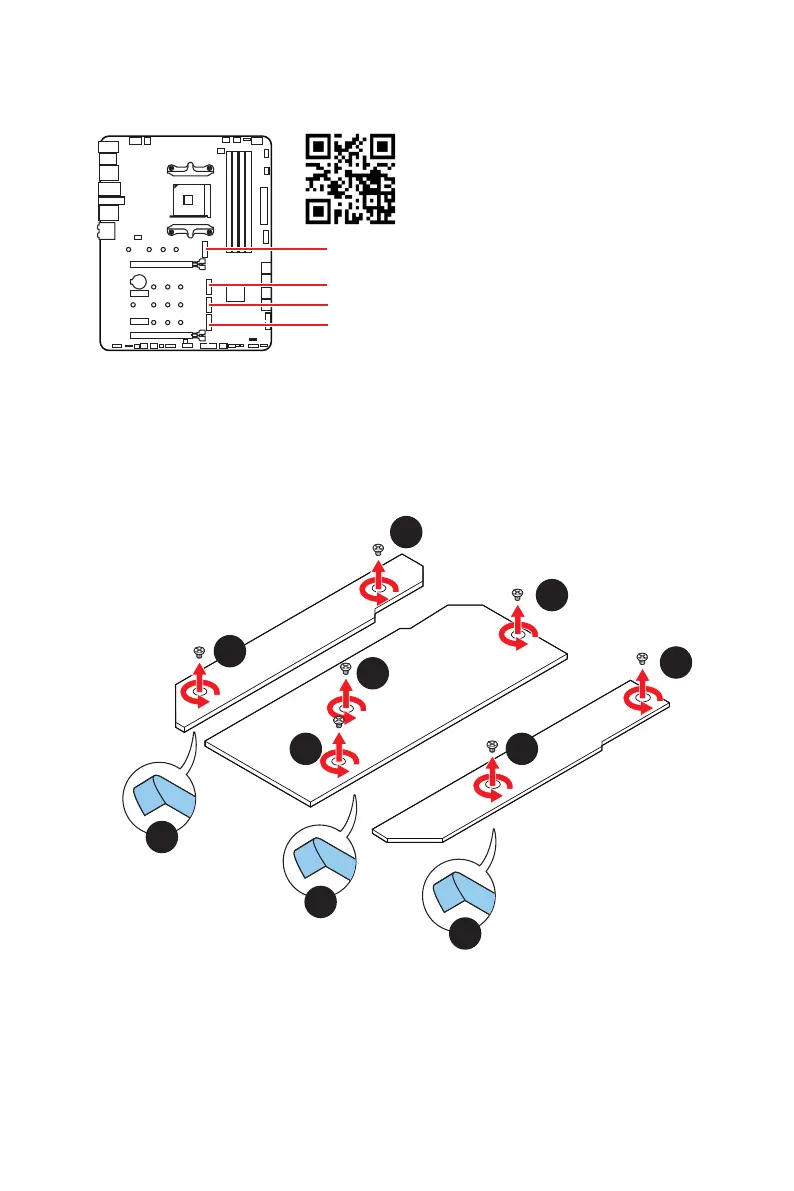

M2_1~4: M.2 Slots (Key M)
M2_1 (CPU)
M2_2 (Chipset)
M2_3 (Chipset)
M2_4 (Chipset)
Installing M.2 module
1. Loosen the screws of M.2 SHIELD FROZR heatsink.
2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads.
1
1
1
1
1
2
2
2
1
1
⚽
Video Demonstration
Watch the video to learn how to Install
M.2 SSD.
https://youtu.be/2UeWMgjwogU
