Hardware Setup
2-17

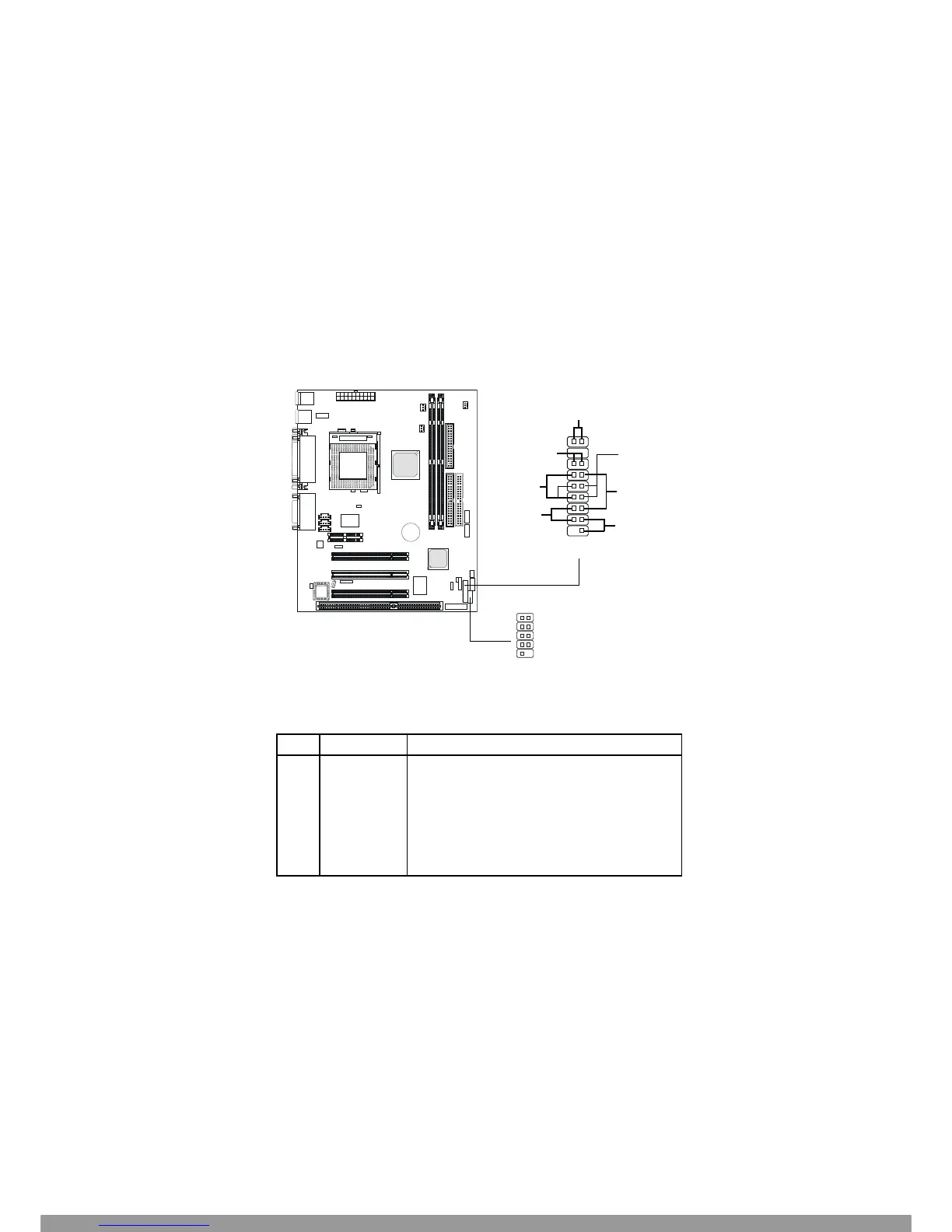

Front Panel Connector: JFP1 or JFP2 (optional Intel spec)
This connector is for electrical connection to the front panel switches
and LEDs.
JFP2
(Optional Intel spec)
1
2
PIN SIGNAL DESCRIPTION
1 HD_LED_P Hard disk LED pull-up
2 FP PWR/SLP MSG LED pull-up
3 HD_LED_N Hard disk active LED
4 FP PWR/SLP MSG LED pull-up
5 RST_SW_1 Reset Switch 1
6 PWR_SW_P Power Switch high reference pull-up
7 RST_SW_2 Reset Switch 2
8 PWR_SW_N Power Switch low reference pull-down to GND
9 RSVD_DNU Reserved. Do not use.
JFP2 Pin Definition
JFP1
Power
Switch
Power
LED
Reset
Switch
HDD LED
+
Speaker
Buzzer
(short pin)
14
15
Keylock
1
10
