AMR (Audio Modem Riser) Slot
AMR is an Intel specification that lets manufacturers create motherboards
without analog I/O functions (codecs). These functions that are required for
auido and/or modem operation are placed on a separate AMR card. You can
install any AMR card with audio and/or modem codec chip on the AMR slot.
PCI Slots
Three PCI slots allow you to insert the expansion cards to meet your
needs. When adding or removing expansion cards, make sure that you unplug
the power supply first. Meanwhile, read the documentation for the expansion
card to make any necessary hardware or software settings for the expansion
card, such as jumpers, switches or BIOS configuration.
ISA Slot
The slot allows you to install ISA expansion card.

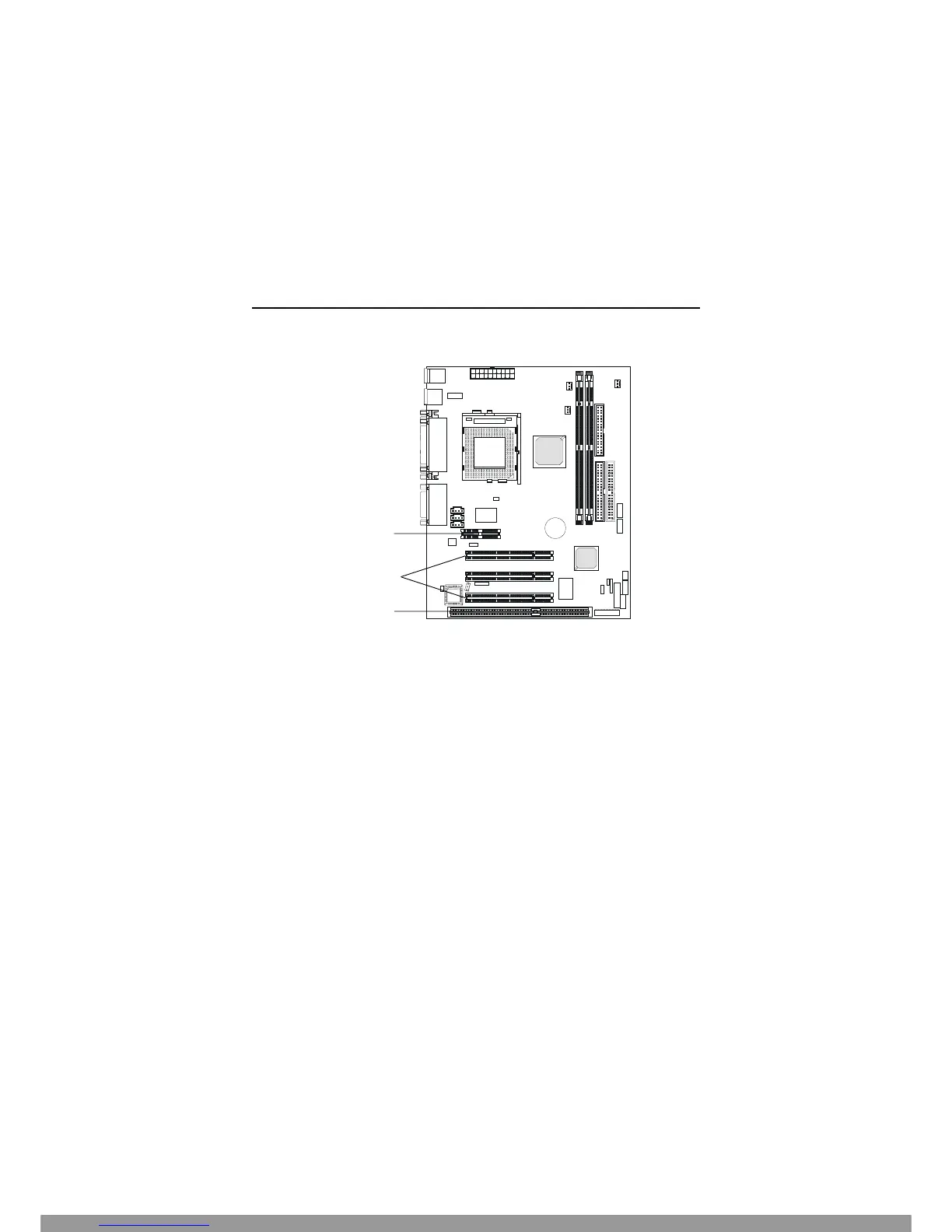

The motherboard provides three 32-bit Master PCI bus slots, one AMR
slot, and one optional 16-bit ISA slot.
PCI Slots
AMR Slot
ISA Slot
